5 Channel Heavy Duty Cable Protector Yellow Jacket

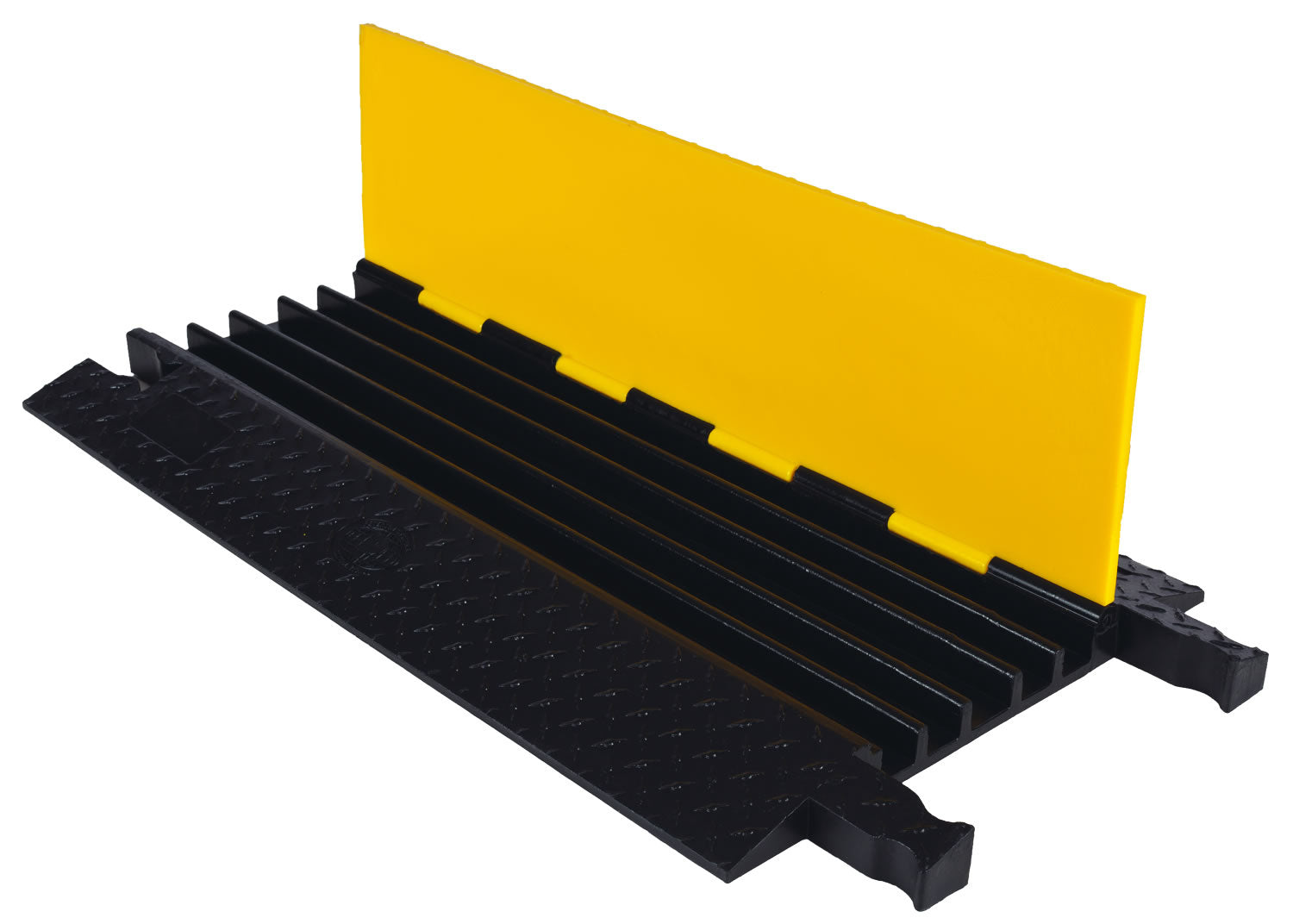

This 5 Channel heavy duty cable protector is part of the Yellow Jacket cable protector range. It is designed to house hoses and cables up to 1” in diameter. Each unit is fitted with a hinged lid that allows for fast and easy changing and laying of cables.

A dog-bone style connector gives a secure and durable join between protection units, making it ideal for prolonged use in construction, entertainment, and military environments.

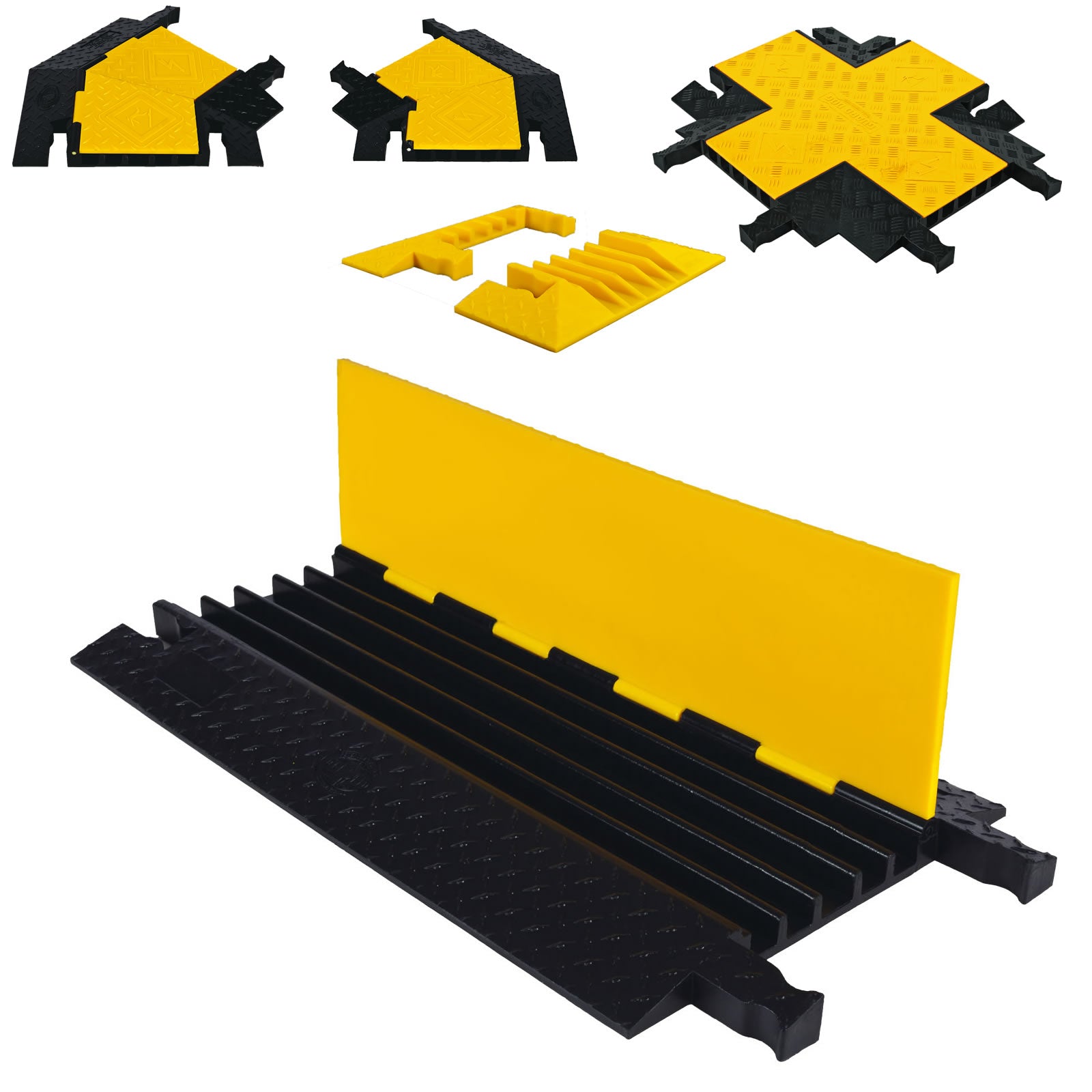

This 5 channel unit is available in multiple configurations, allowing for 45-degree turns, 90-degree crossovers, and end terminations. These are all available to select in the options above.

---

Need Assistance?

If you require colors other than the standard Yellow / Black please call our trained sales team toll-free at (800) 671-9662. They will also be happy to deal with any inquiries that you may have regarding the range and pricing.

Specification

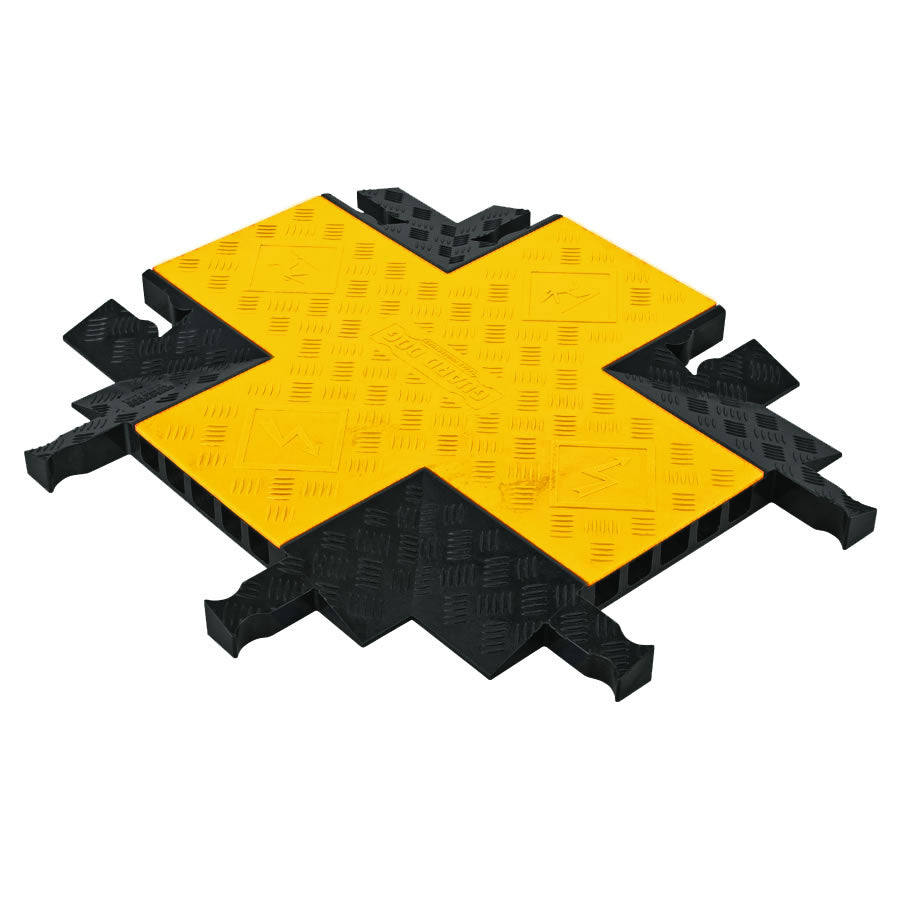

Dimensions - A: 4 way cross

A = 28.5 in. (72.4 cm) A2 = 24.5 in. (62.2 cm)

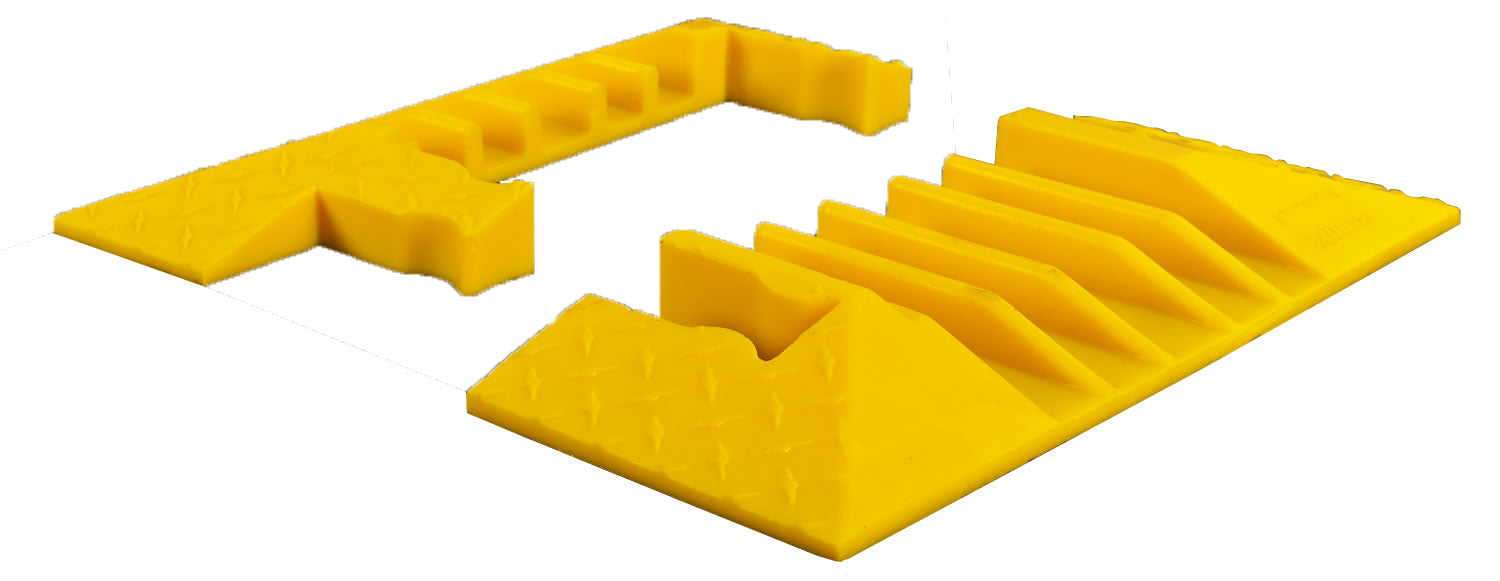

Dimensions - A: end caps

Male 4.25 in. (10.8 cm) | Female 7.375 in. (18.7 cm)

Dimensions - A: straight

36 in. (91.4 cm)

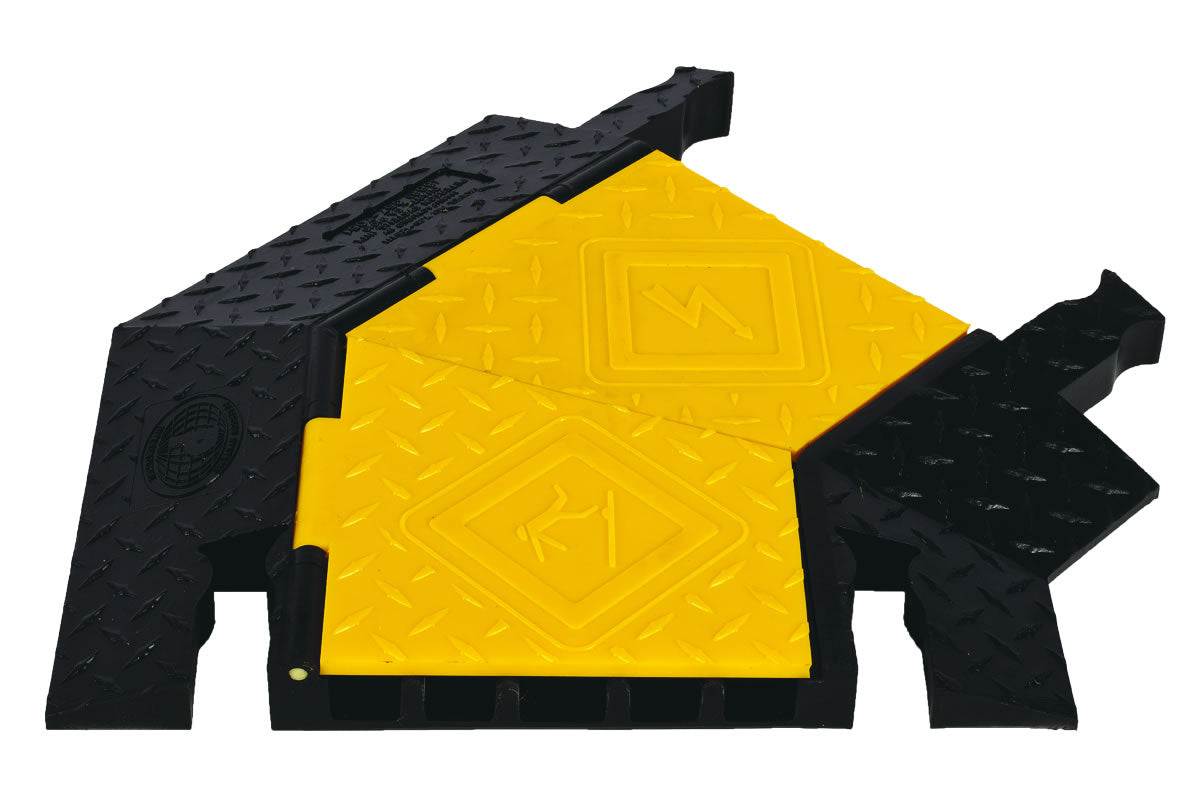

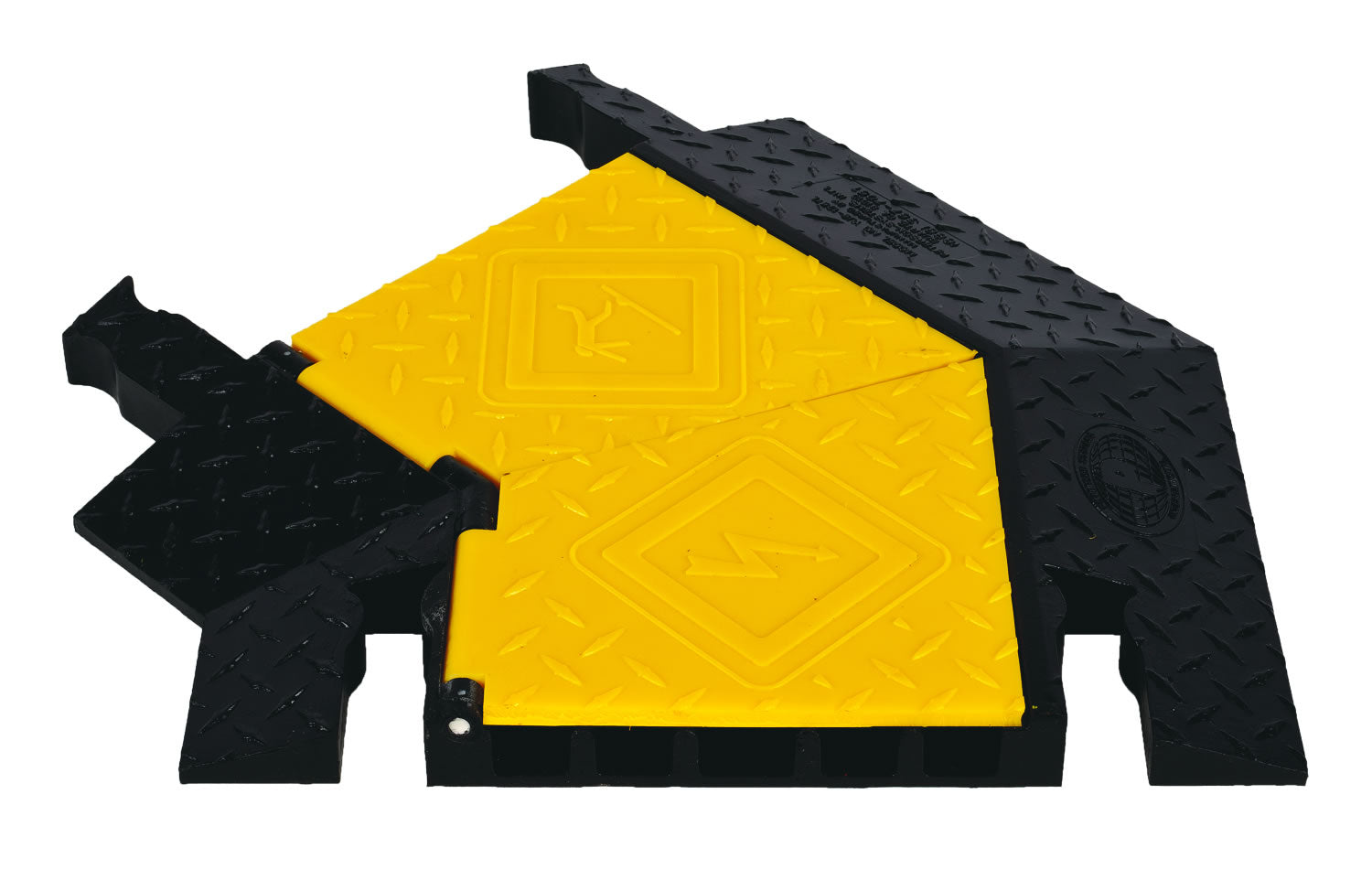

Dimensions - A: turn

24 in. (61 cm)

Dimensions - B: width

19.75 in. (50.2 cm)

Dimensions - C: height

1.875 in. (4.76 cm)

Dimensions - D: channel width

1.25 in. (3.18 cm)

Dimensions - E: channel height

1.325 in. (3.37 cm)

Load Capacity - Per axle

32,600 lb./Axle (14,787 kg) (Max load tested at 70°F (21°C)

Load Capacity - Per tire

16,300 lb./Tire (7,393 kg) (Max load tested at 70°F (21°C)

Miscellaneous - Cable & hose diameter (max)

1.0 in

Miscellaneous - Channels

5

Miscellaneous - Skus

YJ5-125-Y/B, YJ5TL-125-Y/B, YJ5TR-125-Y/B, YJ5EB-125-Y, YJ5X-125-Y/B

Packaging - Weight

Straight 28.2 lb. (12.8 kg) | Turn 14.2 lb. (6.4 kg) | End Caps 4.05 lb. (1.8 kg) | 4-Way 23.1 lb. (10.5 kg)
