Grip Guard Cable Protectors

Grip guard cable protectors are easy to handle thanks to their hand grip style connecting lugs. They are ideal for use where cables cross roadways and pathways and therefore need protection from vehicles passing over them. For pedestrians the Grip Guard cable protection system features a high traction pattern designed to prevent slips and falls.

3 Channel Grip Guard® Cable & Hose Protection System

$254.98

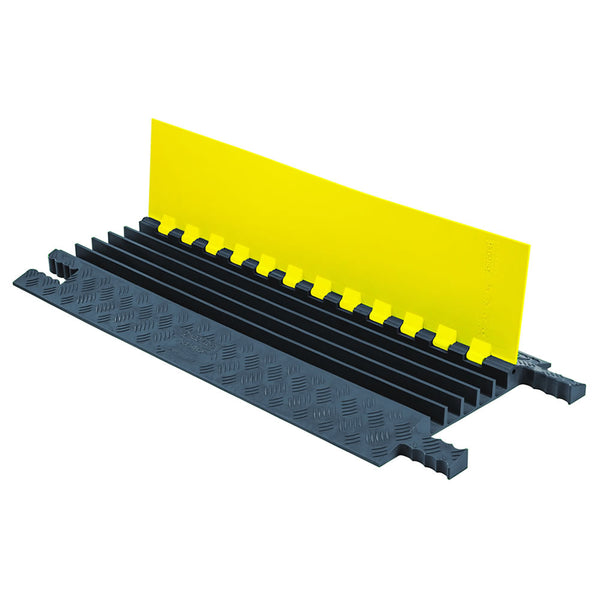

5 Channel Grip Guard® Cable & Hose Protection System

$192.27

Grip Guard Cable Protectors

Key Features

Lightweight construction starting at only 12.75 Lbs
Suitable for cables up to 1.254” (5 Channel) and 2.25” (3 Channel) outside diameter
Ergonomic gripper connectors
Snap Fit™ lid for easy removal and replacement
Can be used year round in all weather
Interlocking design with modular construction to suit any sized project.

Three Or Five Channels

The Grip Guard cable protector system is available in either a three of 5 channel configuration, both products have different channel sizes and weights as outlined in the table below.

The Grip Guard cable protection system gets its name from the ergonomic grip connectors that are designed to fit your hand at either end of the cable protector. These make the cable protector very user-friendly and easy to deploy. As well as being very comfortable to handle the Grip Guard® is also Very lightweight saving up to 75% of the weight when compared to rubber cable protectors.

Grip Guard® Key Differences

3 Channel

Weight: 23 lbs.

Hoses & Cables up to 2.25” Outside Diameter

5 Channel

Weight: 12.75 lbs.

Hoses & Cables up to 1.25” Outside Diameter

For more details on the overall dimensions please see the individual product page.

Maintenance Free Operation

The Grip Guard® Cable Protection System is made from a durable and weatherproof Polyurethane. It does not need any special treatment and can be left out year-round in all climates to ensure the safe crossing of cables for vehicles and pedestrians alike.

Impact, chemical, and non-conductive, oil resistant polyurethane is used in the construction of Grip Guards making them suitable for prolonged use in industrial and construction site environments.

No Compromise Load Capacity

The Grip Guard® is lightweight yet can still take the strain, it is capable of taking loads that punch well above its weight class.

Grip Guard® Load Capacity Tested at 70°F (21°C)

Per Tire

5,000 lbs.

(2,267kg)

Per Axle

10,000 lbs.

(7,534kg)

Superior Grip And Traction

The Grip Guard® Cable Protector features Checkers® patented 5-bar tread pattern for superior pedestrian and vehicle traction when passing over the cable protector.
