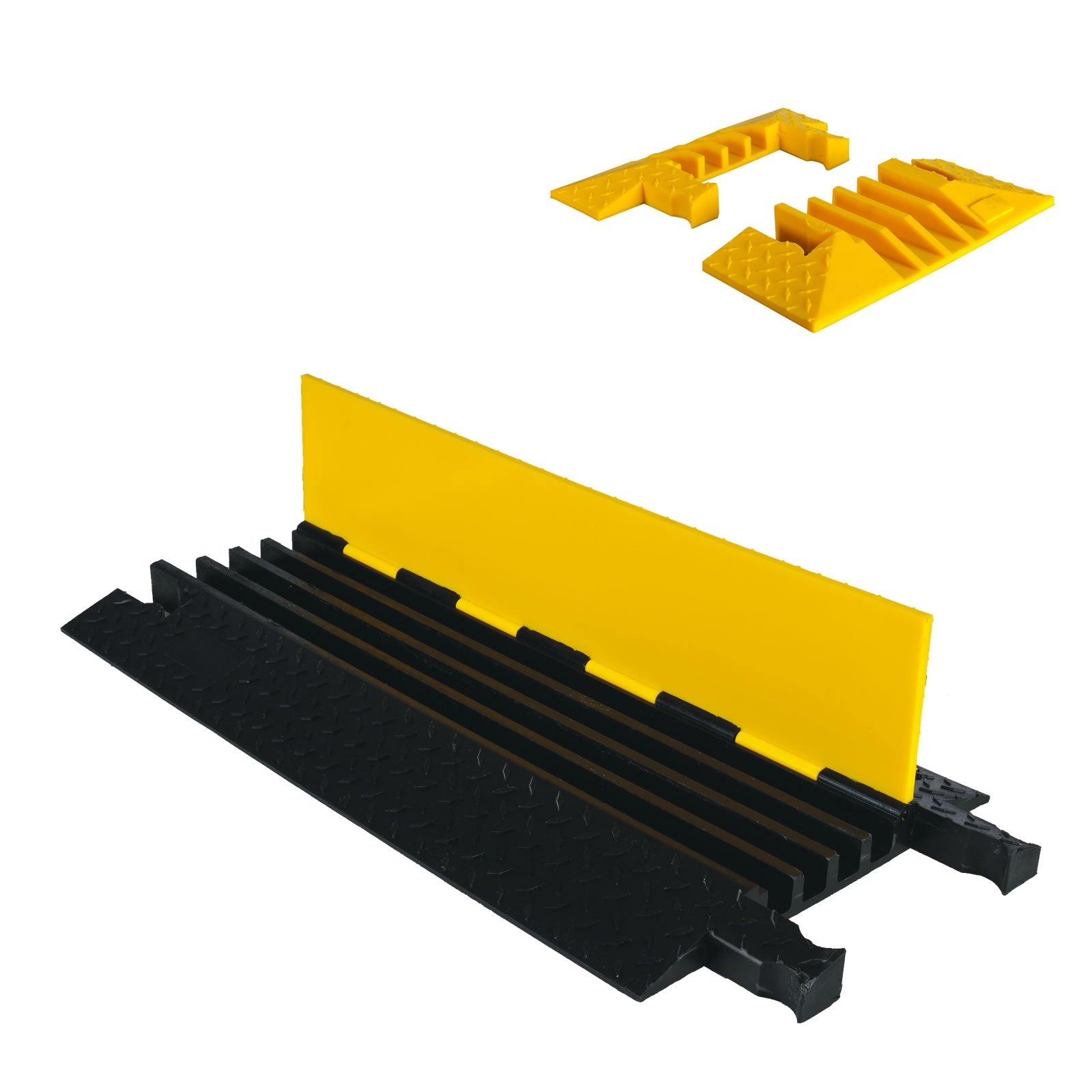

4 Channel Heavy Duty Cable Protector Yellow Jacket

The 4 channel heavy duty Yellow Jacket Cable Protector is an ideal solution for use in high-traffic areas.

It can safely accommodate four cables with an external diameter of up to 1.25". A thick heavy duty lid provides adequate protection for heavier traffic zones.

This durable cable protector can be seen at entertainment venues, ports, harbors, and military installations all over the country.

It is quick to deploy and well suited to both permanent and temporary installations.

It is made from a UV stabilized material that will not deteriorate in the cold or sunlight. This range of cable protection has been in production for over 30 years and is well tested in the field.

Need Assistance?

If you require colors other than the standard Yellow / Black please call our trained sales team toll-free at (800) 671-9662. They will also be happy to deal with any inquiries that you may have regarding the Yellow Jacket range and pricing.

---

Specification

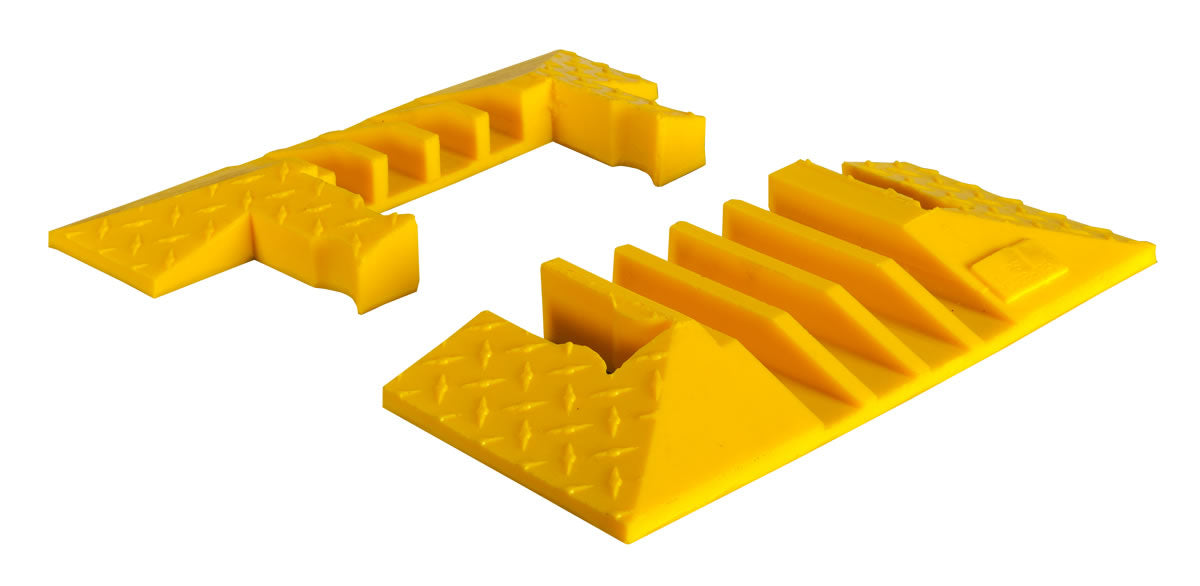

Dimensions - A: end caps

Male 4.25 in. (10.8 cm) | Female 7.25 in. (18.42cm)

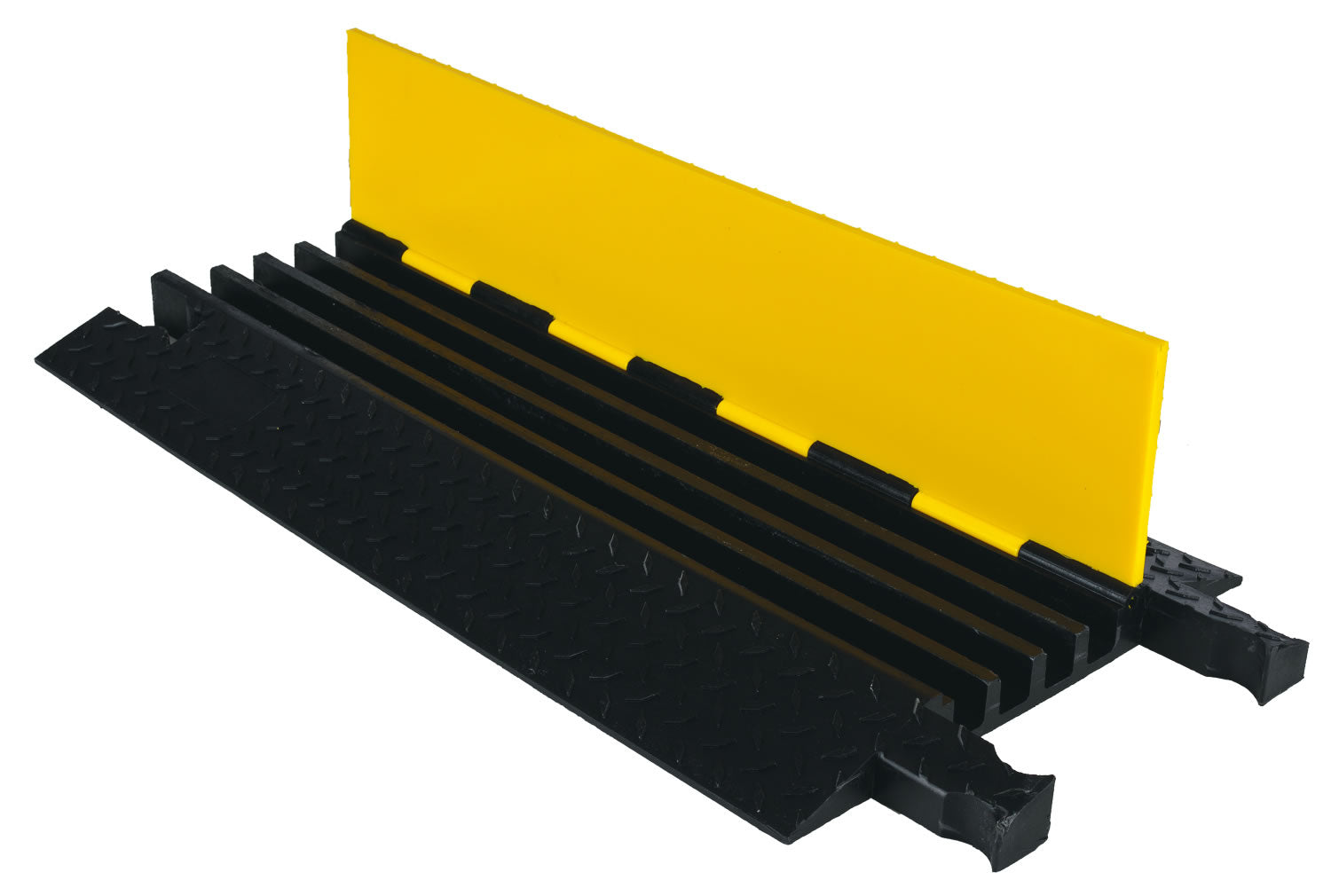

Dimensions - A: straight

36 in. (91.4 cm)

Dimensions - B: width

17.5 in. (44.45 cm)

Dimensions - C: height

2 in. (5.08 cm)

Dimensions - D: channel width

1.25 in. (3.18 cm)

Dimensions - E: channel height

1.25 in. (3.18 cm)

Load Capacity - Per axle

32,600 lb./Axle (14,787 kg) (Max load tested at 70°F (21°C)

Load Capacity - Per tire

16,300 lb./Tire (7,393 kg) (Max load tested at 70°F (21°C)

Miscellaneous - Cable & hose diameter (max)

1.25 in

Miscellaneous - Channels

4

Miscellaneous - Skus

YJ4-125-Y/B, YJ4EB-125-Y

Packaging - Weight

Straight 23.5 lb. (40.7 kg) | End Caps 3.8 lb. (1.7 kg)
