Scout Mat Connectors - 2-Way or 4-Way

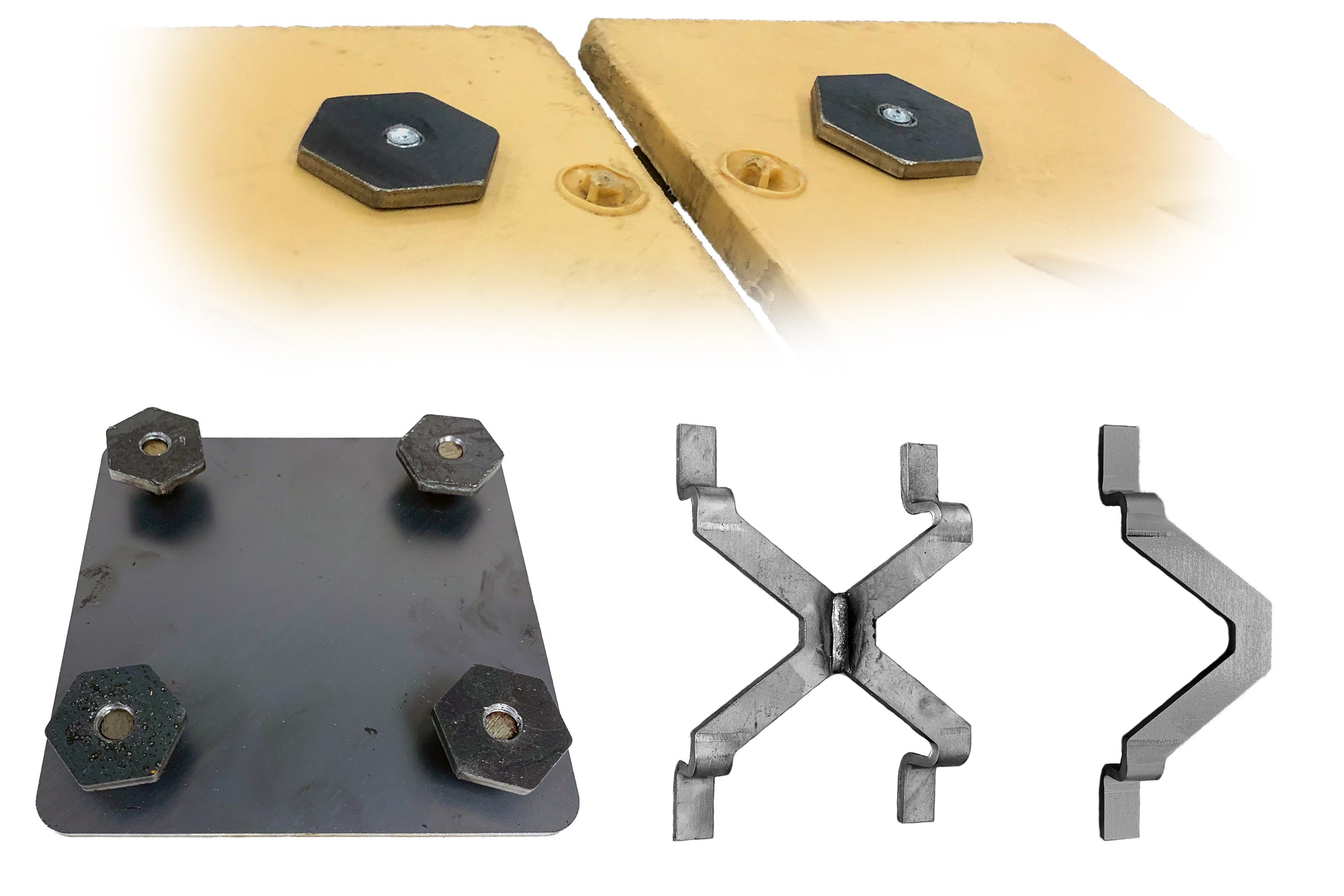

Need to hold your mats together? These Connectors can be used to hold the Scout Mats™ together, depending on your situation and length of use. We offer two types, under-mount, and over-mount connectors. Over-mount is quicker and easier to install while under-mount connectors are better suited for long-term deployment of Scout Mats™ due to their discreet fitment.

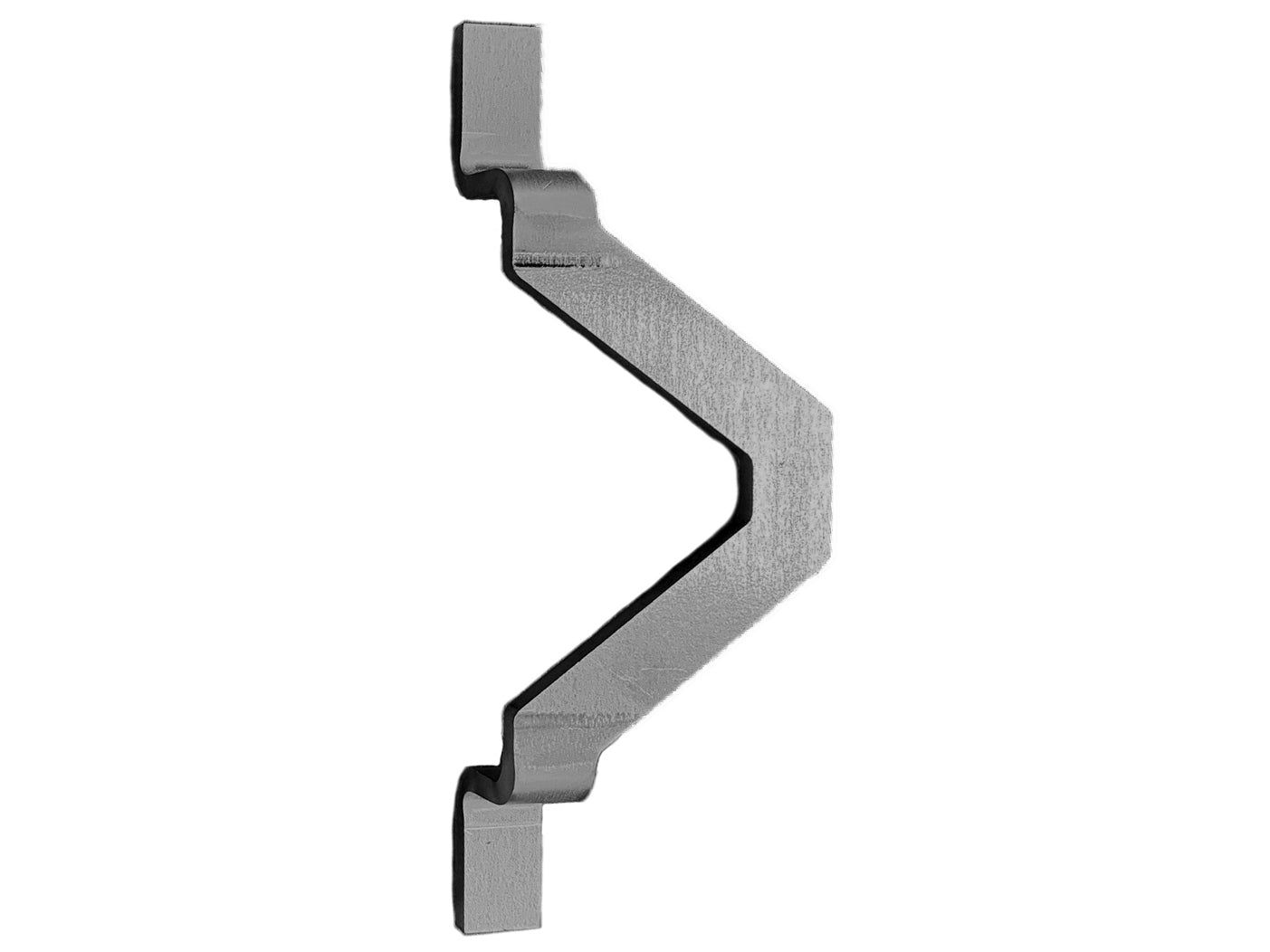

2-Way stainless steel over-mount

2-Way stainless steel over-mount

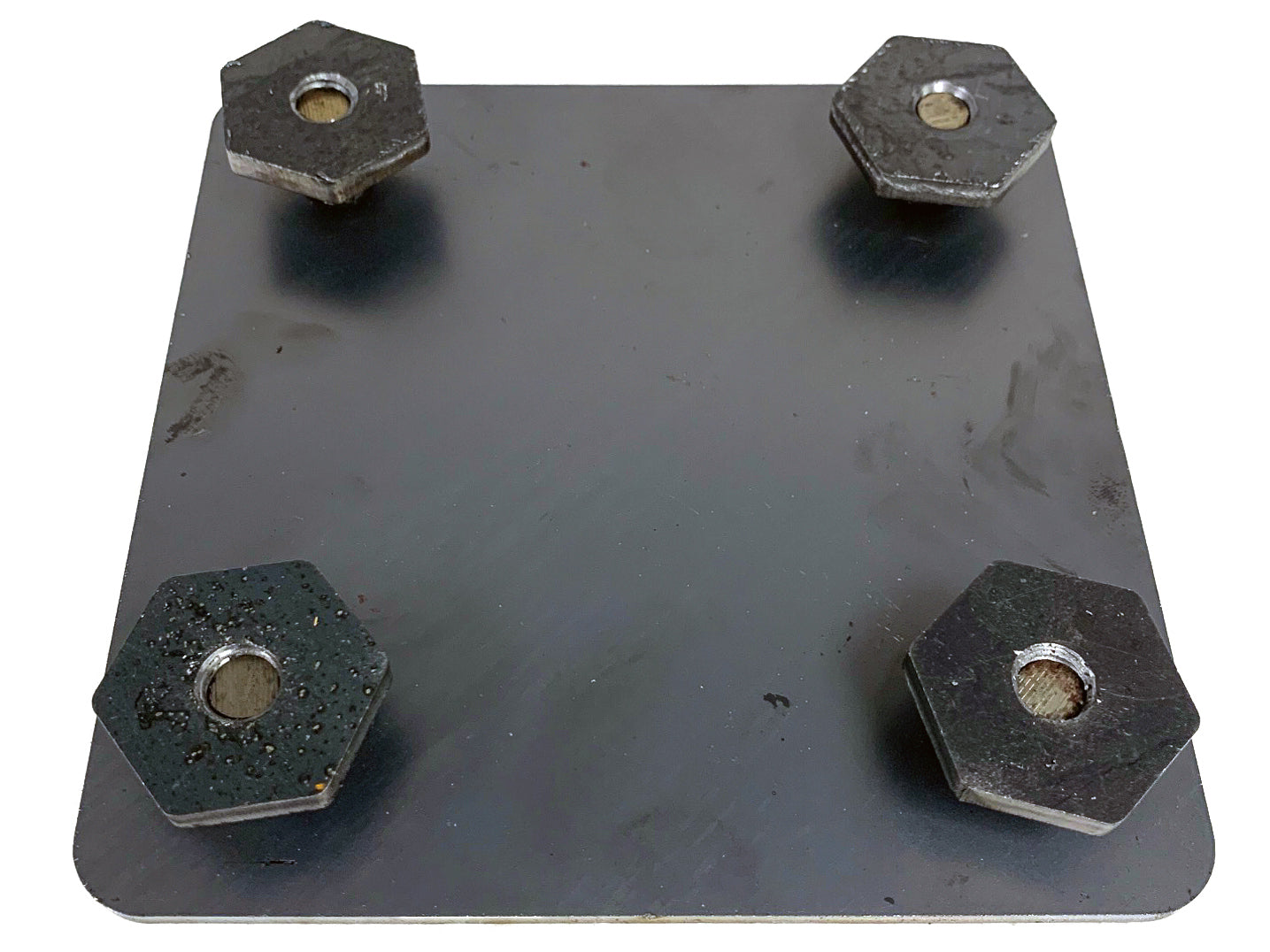

4-Way steel under-mount

4-Way steel under-mount

FAQ

Q: Why are the over-mount connectors stainless steel but the under-mount are not?

Cost, the under-mount connectors are larger and more substantial, we prefer the under-mount connectors for longevity and functionality.

Q: Why would a customer choose over-mount connectors other than cost?

Over-mount is quicker to install, however, as they're exposed on top, they're more susceptible to damage over long-term use.

Do you have questions about the Scout Mat Connectors?

If you have any questions about our accessories for Scout Mat, then please call our sales team toll at (800) 671-9662.

Specification

Dimensions - Height

2-Way Undermount Connector: 3.5 in 4-Way Undermount Connector: 7 in 2-Way Overmount Connector: 7.5 in 2-Way Overmount Connector: 7.5 in

Dimensions - Length

2-Way Undermount Connector: 1/8 in 4-Way Undermount Connector: 1/8 in 2-Way Overmount Connector: 1 in 2-Way Overmount Connector: 1 in

Dimensions - Width

2-Way Undermount Connector: 3.5 in 4-Way Undermount Connector: 7 in 2-Way Overmount Connector: 2.5 in 2-Way Overmount Connector: 5 in

Miscellaneous - Skus

13326, 13327, 13328, 13329

Weight - Weight

2-Way Undermount Connector: 1.5 lbs 4-Way Undermount Connector: 3 lbs 2-Way Overmount Connector: 0.35 lbs 2-Way Overmount Connector: 0.7 lbs
