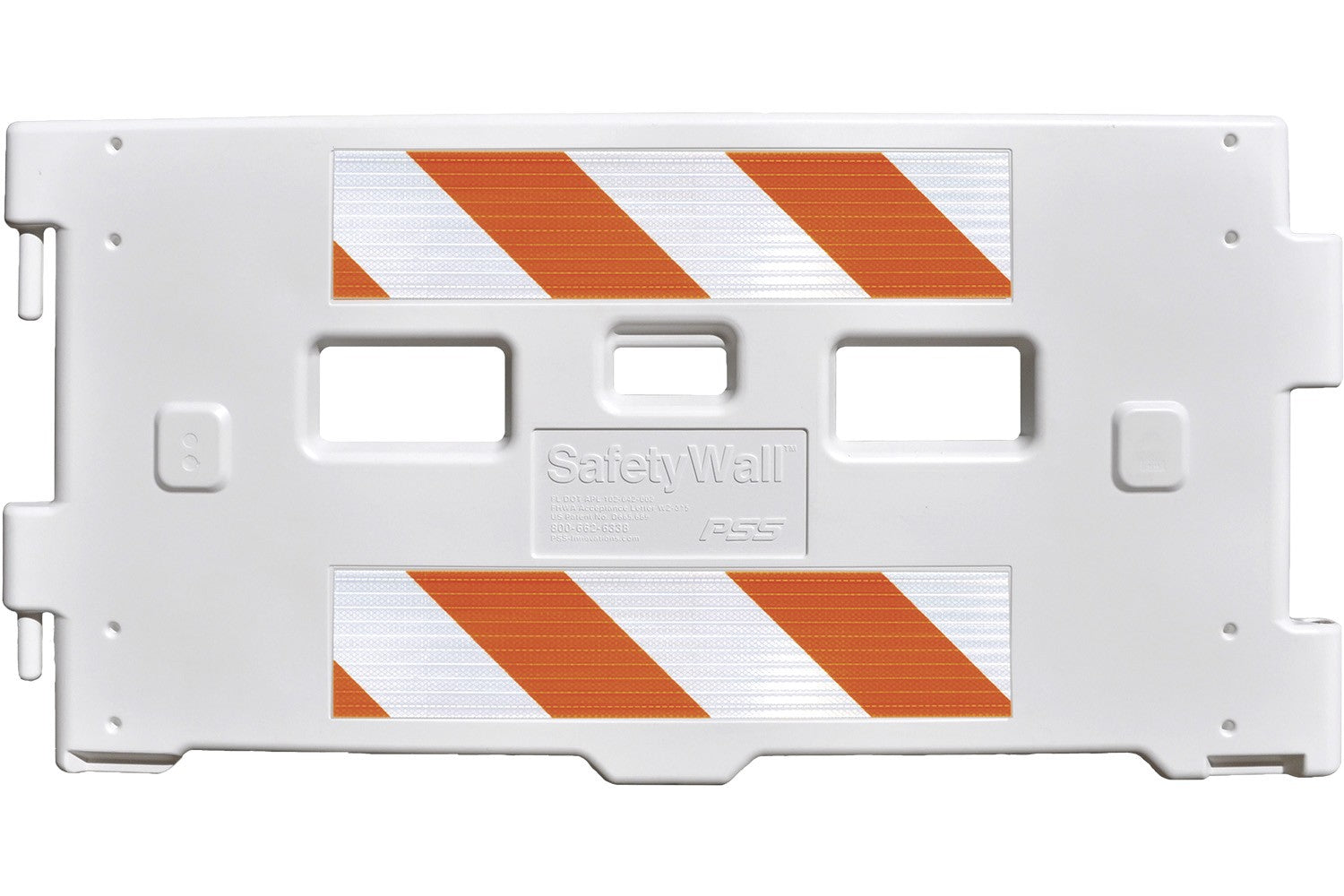

The SafetyWall is the perfect option for construction zones and pedestrian diversions thanks to its continuous interlocking horizontal plane and solid wall-like structure, this barrier has a low profile which prevents small children and animals from potentially passing through. Tried and tested over decades of use, this is a great choice if you're in need of a road and ADA pedestrian complaint barricade.
This is a quality built-for-purpose safety barricade made from thick high strength, high-density HDPE coupled with fold-out steel tube feet. The SafetyWall barricade is stable when deployed, and compact when folded. Visual and sound aids can be fitted on the top and reflective warning sheeting applied to the side walls for excellent visibility. Each barricade uses 2 built-in interlocking cylindrical connectors for a secure fit and allows pivoting to configure your layout and setup.
Available in safety orange or white with many different options, talk to one of our team members today to see how we can help you with your project needs, or scroll down to read more about the SafetyWall.
One-piece design SafetyWall® Barricade with your reflective sheeting of choice
Two fold-out steel galvanized supporting legs, pre-assembled.
Tested to Manual for Assessing Safety Hardware (MASH) Test Level: 3 - Click to view the download area for FHWA Eligibility Letter
| Barricade Color | Reflective Sheet Options | Sides & Stripe Directions |
| White | High-Intensity Prismatic (HIP) | Front Side (Facing Pedestrian) with Left & Right Stripes or Block Directive |
| Orange | Diamond (DIA) | Back Side with Left & Right Stripes or Block Directive |
| Both Sides with Left & Right Stripes or Block Directive |
The SafetyWall provides secure pivoting top and bottom hinges to connect each barricade together.
Each barrier is equipped with fold-away steel tube supports which fold out when deployed.
Use your existing inventory of sandbags to add ballast for short runs of barricade length.
Meets ASTM requirement standards for D4956-09 Type III and Type IV, as well as ASTM 4956-07 Type X. It is a non-metalized micro prismatic lens reflective sheeting. HIP sheeting is highly reflective, and its durable topcoat protects signs and other traffic control devices against scratches and abrasion. Not only is it highly reflective at night, but it also commands attention during the day as well.
Meets ASTM Type XI standard. A full cube prismatic reflective sheeting that returns almost 60% of the available light to vehicle drivers which is about double what HIP reflective sheeting reflects. With pending legislation in the US, this material will likely be required to replace many existing signs. Currently, all new “critical” traffic control signs (such as Stop signs, speed limit signs, etc.) are required to utilize this sheeting.
3M Retro-reflective sheeting can be applied on one side or both sides of the centerboards. Example option configurations: Both Sides (RIGHT/RIGHT) = Right leaning stripes on both sides of the Wave board. Both Sides (RIGHT/LEFT) = Right leaning stripes on one side of Wave board with left leaning on the other.
Where barricades extend across a path or roadway, the stripes should slope downward in the direction toward which pedestrians or vehicles must turn.
A new type of specification that's used in Michigan and other states. This design can be used to demonstrate a 'do not pass' warning or to show work in progress for construction, utilities, and excavation sites.
| SafetyWall® | SafetyRail™ - Click to view | |
|---|---|---|
 |
 |
|
| Ballast/Stabilization Type | Sandbags placed on steel legs | Fillable with sand & use of sandbags |
| Barricade Color Options | White or Orange | White |
| Weight | 35 lbs plus additional sandbags | 7 lbs empty and up to 25lbs with sand fill |
| Dimensions | 3" W x 36.25" H x 74" L | 3.25" W x 38" H x 24" L at base |
| Length of barricade when deployed | 72" (Overall length is 74") | 48" or 72" Wave Guide Rail/Centerboard |
| Gap between bottom and ground | Less than 2" | 1.5" (From lower Wave board) |
| Reflective Stripe Options | Engineering, High-Intensity Prismatic, Diamond | Engineering, High-Intensity Prismatic, Diamond |
| Reflectives available on both sides | ||
| Mount for Audible Information Devices or Warning Lights | ||
| Carry handles | ||
| Transport Stackable | ||
| Toolless assembly | ||
| ADA Compliant | ||
| FHWA MASH Approved | ||
| MUTCD 2009 Compliant | ||
| Made in the USA | ||
| Material Composition | HDPE with UV inhibitors, Galvanized Zinc Steel Tube Supports | HDPE with UV inhibitors |
| Compatible with | PSS BoardWalk Ramp | PSS Wave Centerboards |
SafetyWall barricades work well as a temporary wall-like barrier. Channelize walkways and crossings for pedestrians without gaps.
A fan favorite for construction project managers as it provides ADA-compliant heavy-duty, maintenance-free deployment. Essential when diverting public walkways around your worksite or construction perimeter.
