Product code: 210440
In Stock
$329.59

Call for volume pricing!

(800) 671-9662

  • Expedited Shipping Available Upon Request

  • Volume Discounts Buy More, Pay Less

  • Zero Sales Tax Order Online

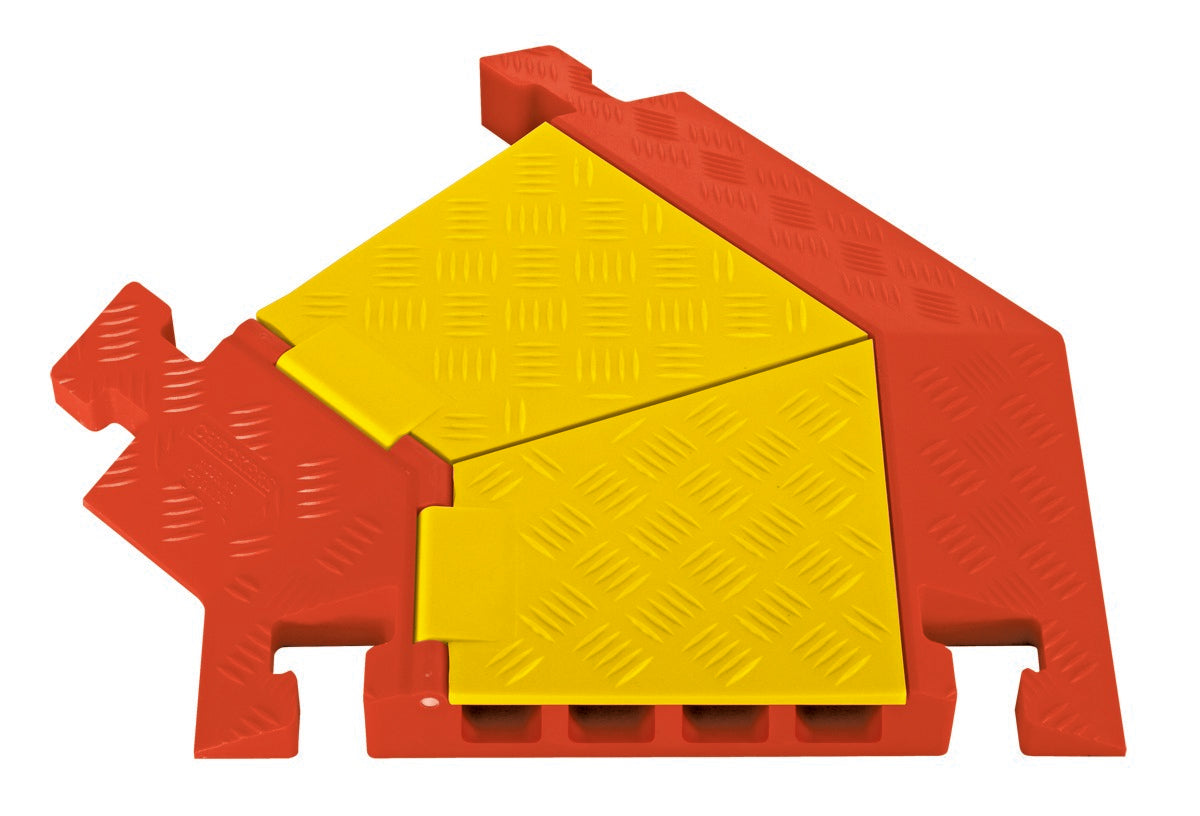

Linebacker® Type: Left Turn CPT4X125-L

  • Need a large quantity? Call (800) 671-9662 for a quote.

  • View the product details below to learn more about this product.
4 Channel Heavy Duty Linebacker 45° Left / Right Turn Cable Protection

4 Channel Heavy Duty Linebacker 45° Left / Right Turn Cable Protection

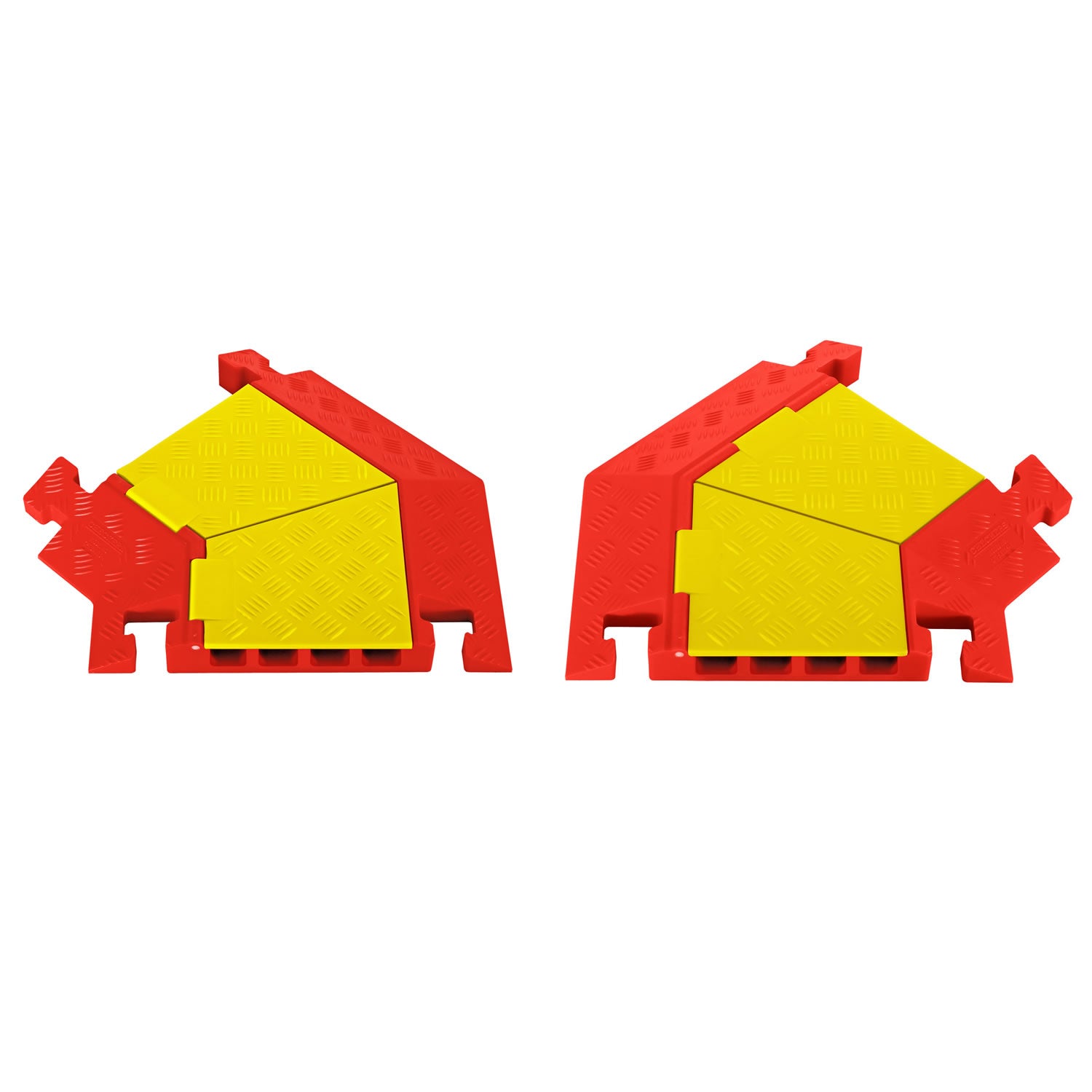

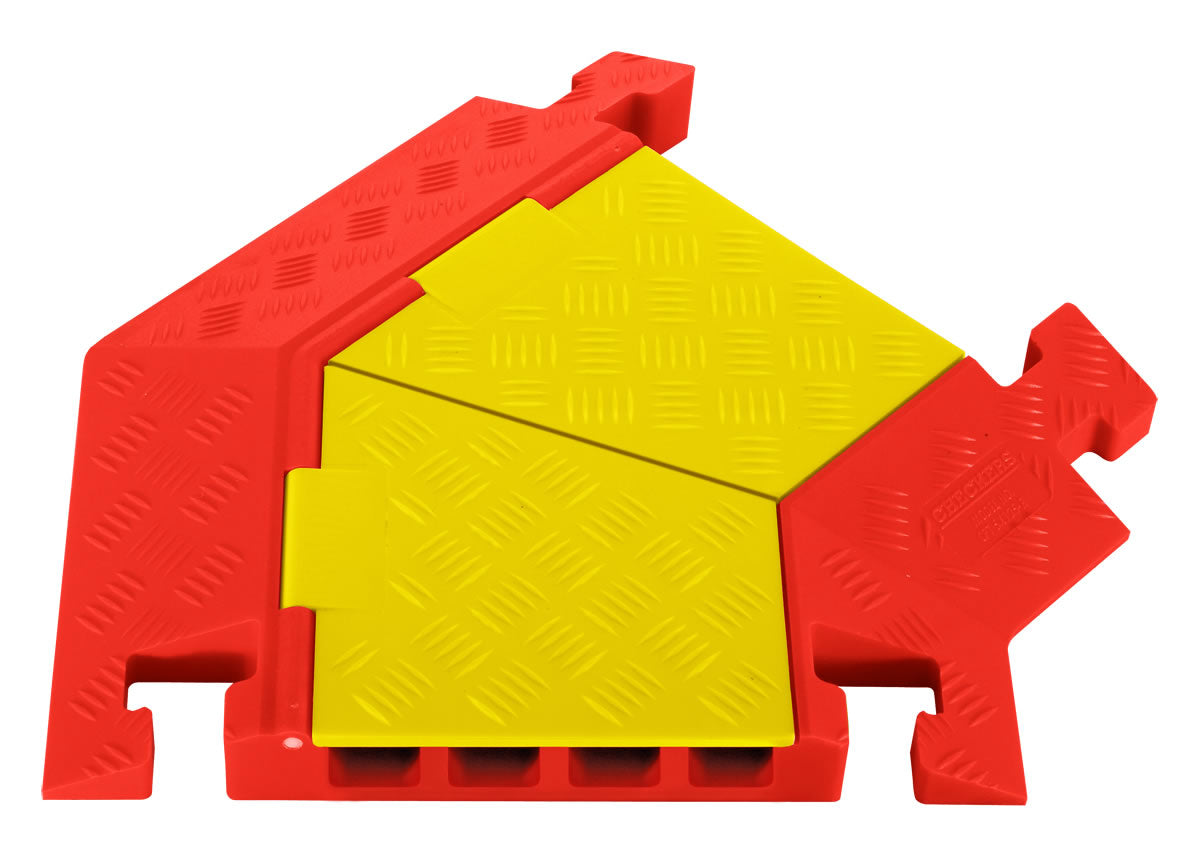

Linebacker® 4 Channel Heavy Duty 45° Left / Right Turn

The Linebacker® 4 channel heavy duty turn units, can accommodate four cables or hoses up to 1.35” outside diameter. It has an exceptional load capacity of 40,300lb. per vehicle axle, this makes the Linebacker® Heavy Duty ideal for industrial, heavy commercial environments and farms. These units are essential if you need to negotiate a corner, or change of direction within a hose or cable run.

  • Easy To Transport - Each section is compact in size and easy to store, transport and handle.
  • Interlocking Design - With each section locking into the next using Checkers patented T-Connector you can make any run as long as needed.
  • All Weather Construction - The UV stabilised Polyurethane construction means that the Linebacker® can be used in all seasons and almost all environments. It is also abrasion, impact and chemical resistant.
  • Lift Cables without Dismantling the run - The reinforced hinged lid means that cables can be lifted and removed or replaced without taking the run of protection apart.

Within the Linebacker® heavy duty 4 channel range there are plenty of accessories available, including; end caps for smooth cable entry and exit, and bridges to link parallel straight sections together. You can read more about the linebacker® range here.

Have questions about cable protection products?

Give our sales team a call toll free at (800) 671-9662, our experienced staff will help you choose the best product for your needs.

4 Channel Heavy Duty Linebacker 45° Left / Right Turn Cable Protection

Specification

Dimensions - A: length
25 in. (63.5 cm)
Dimensions - B: width
20 in. (50.8 cm)
Dimensions - C: height
2.31 in. (5.72 cm)
Dimensions - D: channel width
1.85 in. (4.71 cm) (1 channel is 1.54 in. (3.92 cm))
Dimensions - E: channel height
1.35 in. (3.43 cm)
Load Capacity - Per axle
40,300 lb./Axle (18,280 kg) (Max load tested at 70°F (21°C)
Load Capacity - Per tire
20,150 lb./Tire (9,140 kg) (Max load tested at 70°F (21°C)
Miscellaneous - Cable & hose diameter (max)
1.35 in
Miscellaneous - Channels
4
Miscellaneous - Skus
CPT4X125-L-Y/O, CPT4X125-R-Y/O
Packaging - Weight
13.0 lb. (5.9 kg)
