Product code: 210497
In Stock
$670.69

Call for volume pricing!

(800) 671-9662

  • Expedited Shipping Available Upon Request

  • Volume Discounts Buy More, Pay Less

  • Zero Sales Tax Order Online

Title: Default Title

  • Need a large quantity? Call (800) 671-9662 for a quote.

  • View the product details below to learn more about this product.
2 Channel Heavy Duty Linebacker® Cable & Hose Protection System

2 Channel Heavy Duty Linebacker® Cable & Hose Protection System

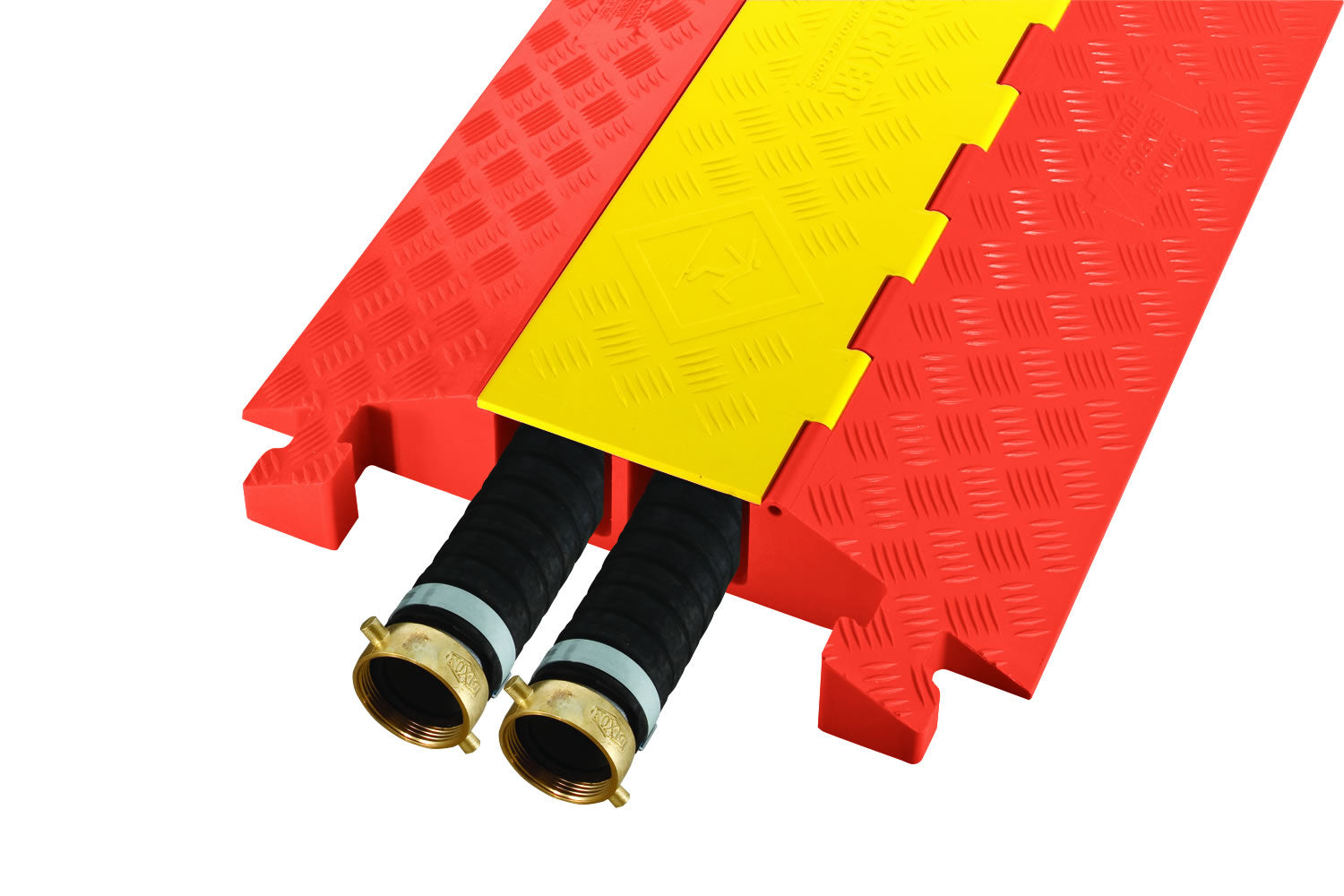

Linebacker® 2 Channel Heavy Duty Cable & Hose Protector

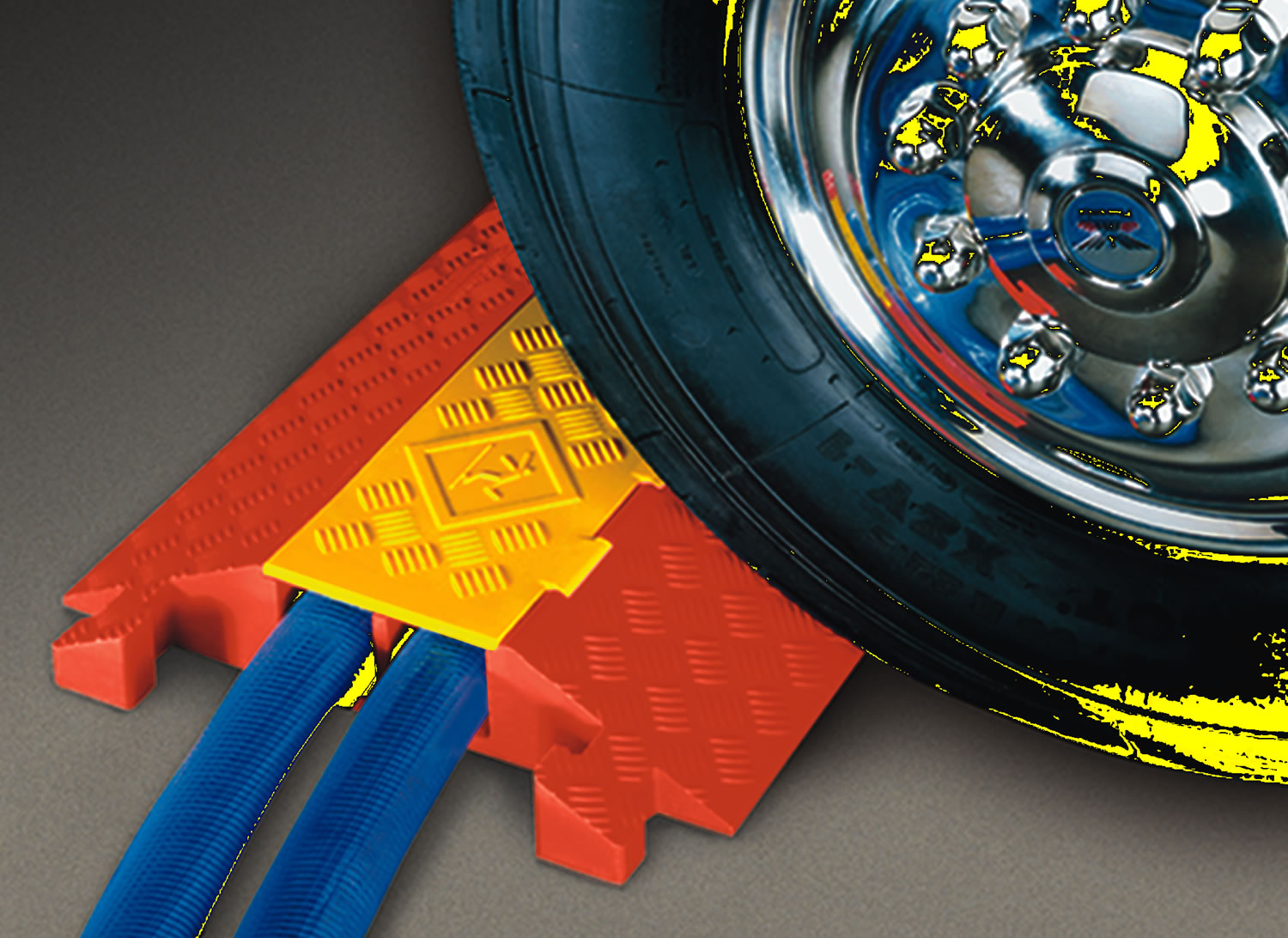

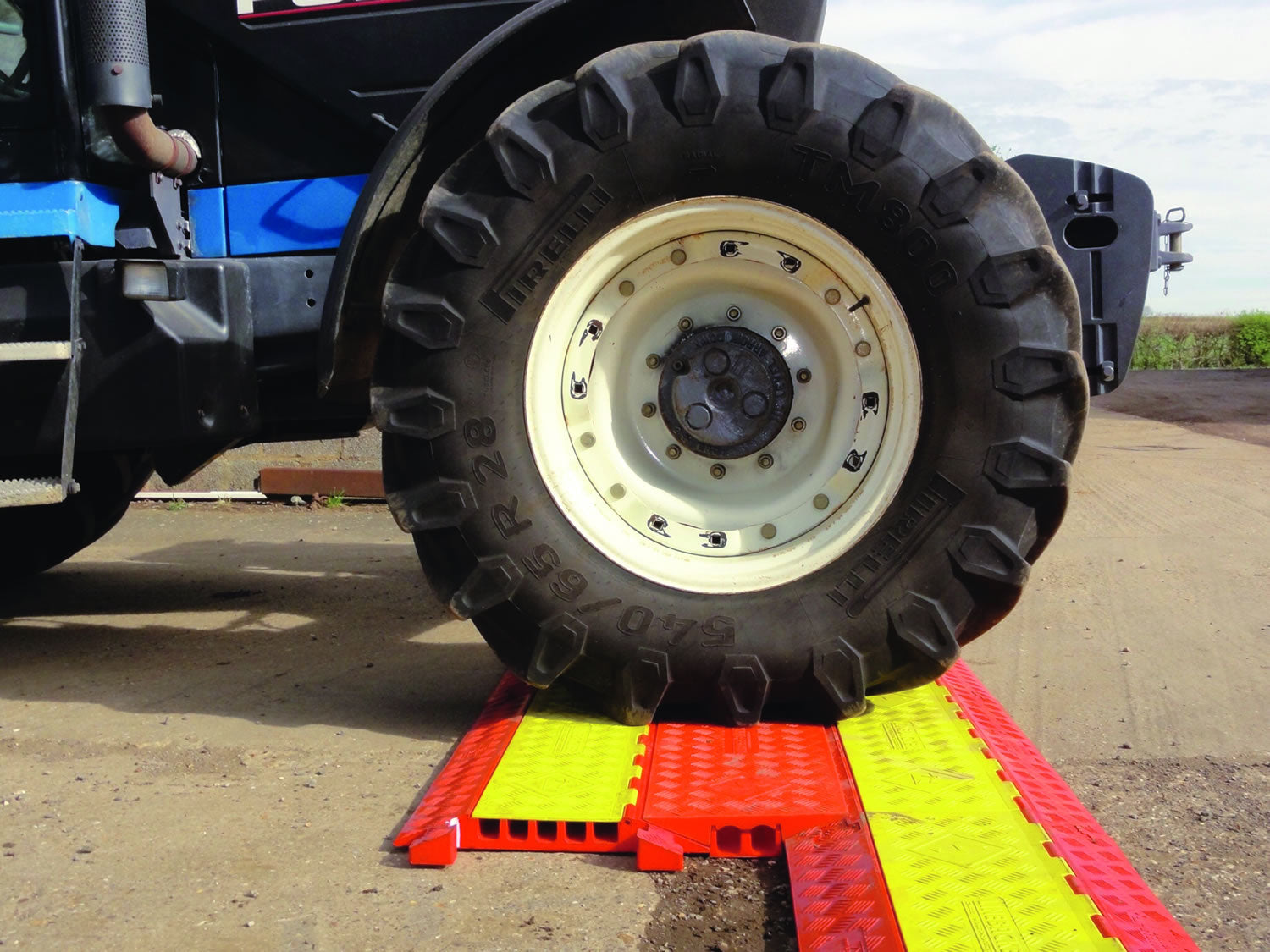

The Linebacker® 2 channel heavy duty cable protector can accommodate cables and hoses up to 3.25” outside diameter. It has an exceptional load capacity of 21,760lb. per vehicle axle, this makes the Linebacker® Heavy Duty ideal for industrial, heavy commercial environments and farms.

  • Easy To Transport - Each section is 36” long, which is ideal for manual installation by a single worker.
  • Interlocking Design - With each section locking into the next using Checkers patented T-Connector you can make any run as long as needed.
  • All Weather Construction - The UV stabilised Polyurethane construction means that the Linebacker® can be used in all seasons and almost all environments. It is also abrasion, impact and chemical resistant.

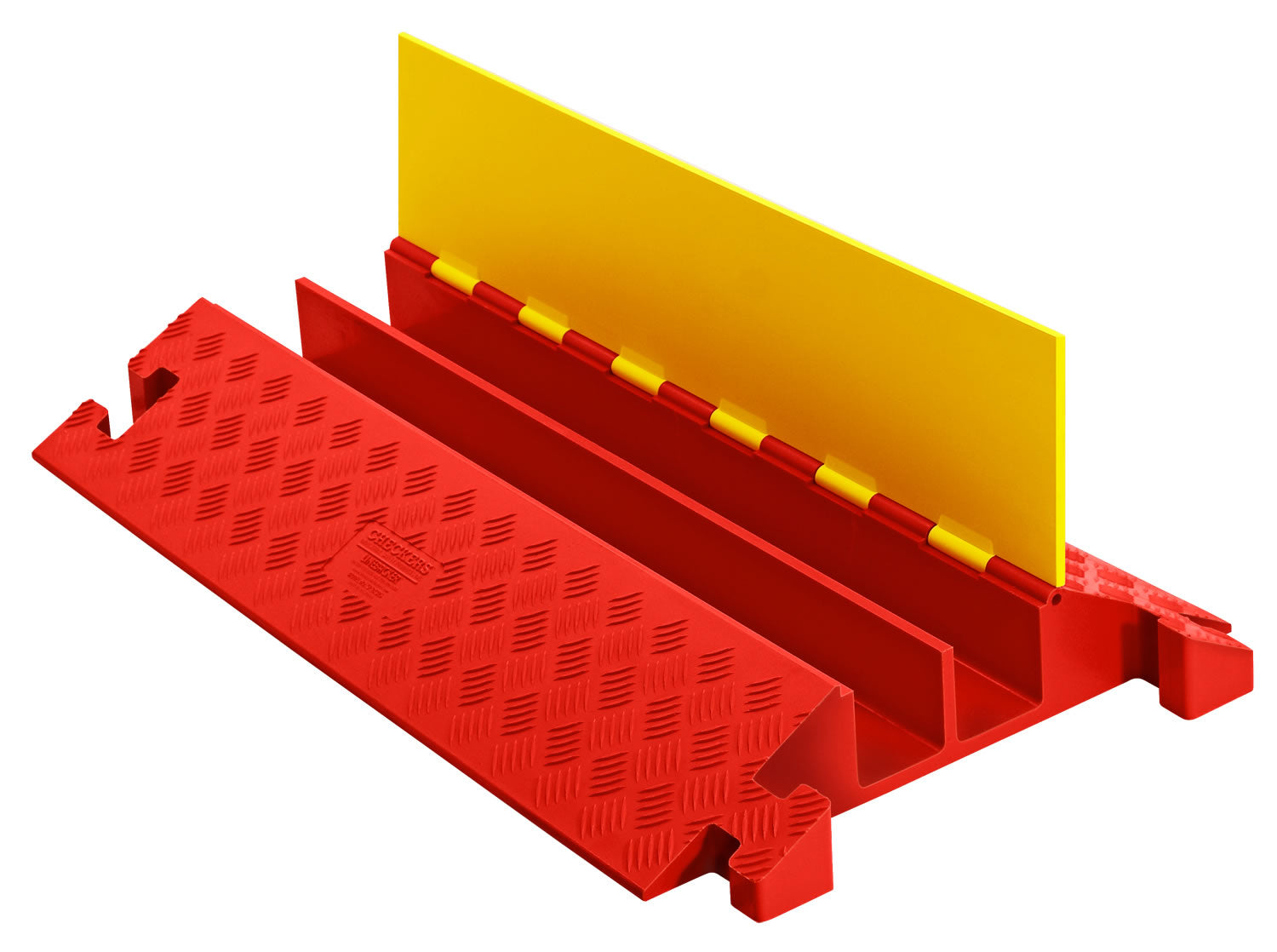

  • Lift Cables without Dismantling the run - The reinforced hinged lid means that cables can be lifted and removed or replaced without taking the run of protection apart.
Within the Linebacker® range there are many other formats including three, four, and five channel both general purpose and heavy duty ramps, check out more of the range here.

Have questions about cable protection products?

Give our sales team a call toll free at (800) 671-9662, our experienced staff will help you choose the best product for your needs.

2 Channel Heavy Duty Linebacker® Cable & Hose Protection System

Specification

Dimensions - A: length
36 in. (91.4 cm)
Dimensions - B: width
22 in. (55.88 cm)
Dimensions - C: height
4.13 in. (10.16 cm)
Dimensions - D: channel width
3.25 in. (8.26 cm)
Dimensions - E: channel height
3.25 in. (8.26 cm)
Load Capacity - Per axle
21,760 lb./Axle (9,870 kg) (Max load tested at 70°F (21°C)
Load Capacity - Per tire
10,880 lb./Tire (4,935 kg) (Max load tested at 70°F (21°C)
Miscellaneous - Cable & hose diameter (max)
3.25 in
Miscellaneous - Channels
2
Packaging - Weight
33.0 lb. (15 kg)

Downloads

Linebacker 2 Channel Heavy
