5 Channel General Purpose Linebacker® Cable & Hose Protection System
$312.60

5 Channel General Purpose Linebacker® Cable & Hose Protection System

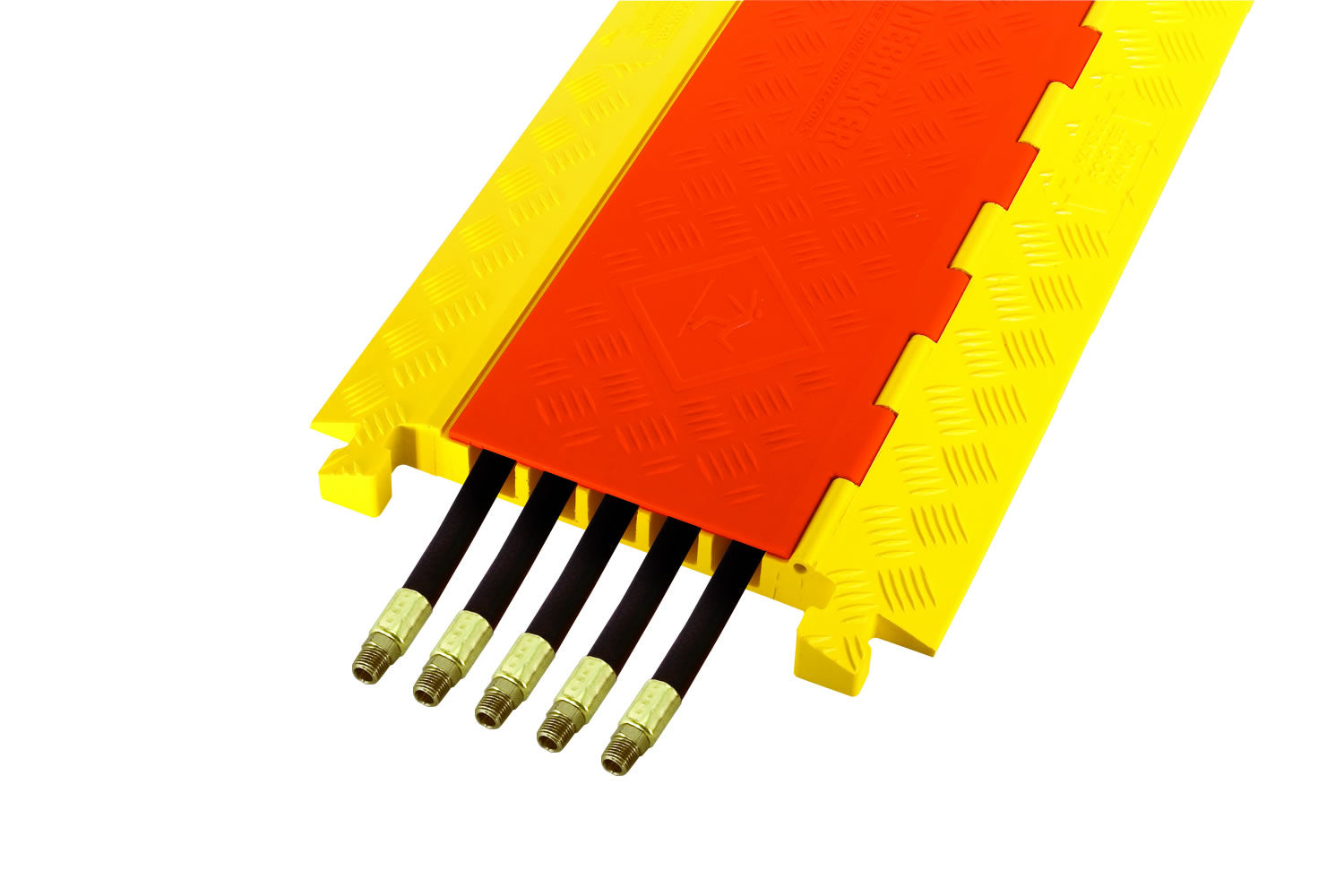

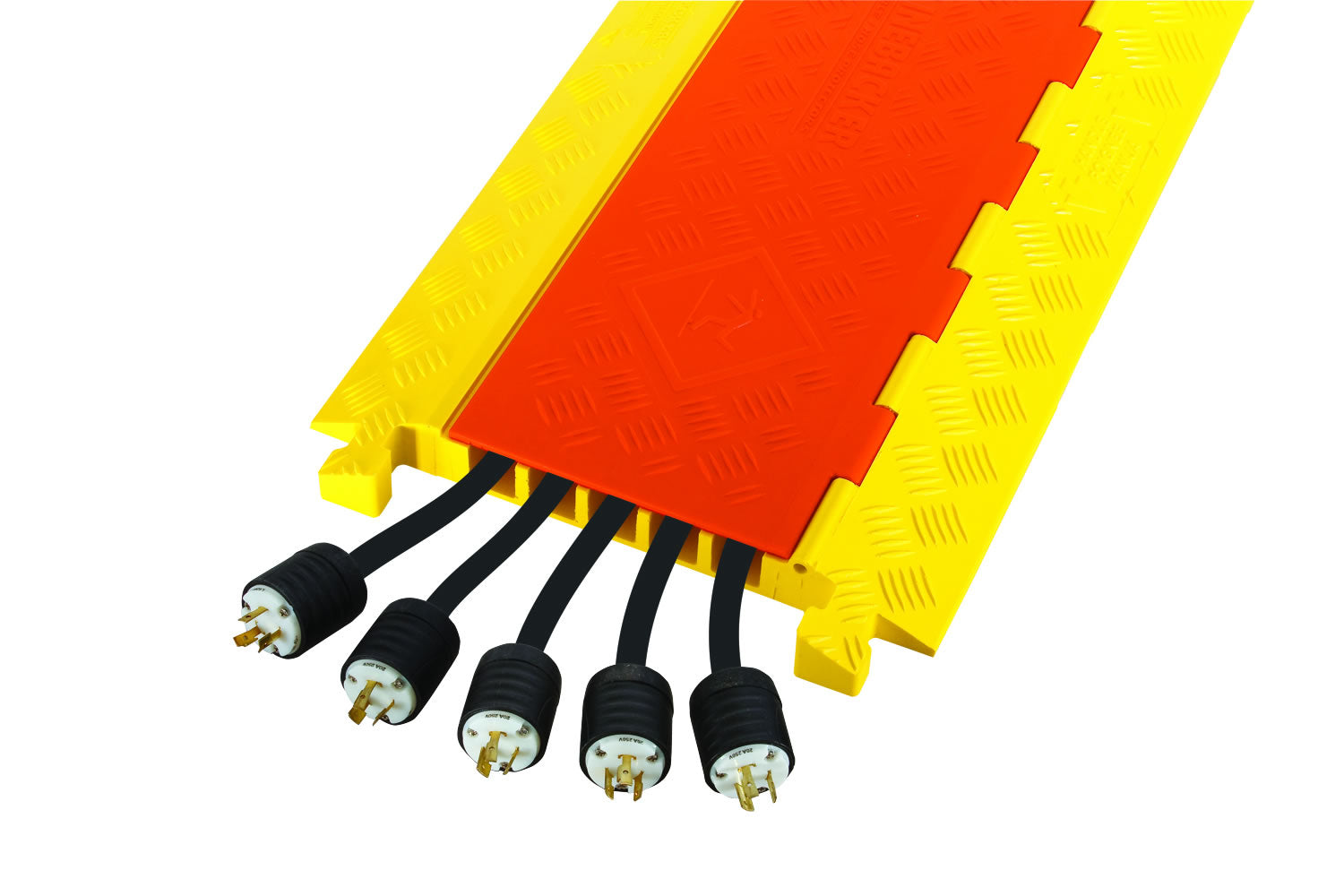

Linebacker® 5 Channel General Purpose Cable & Hose Protector

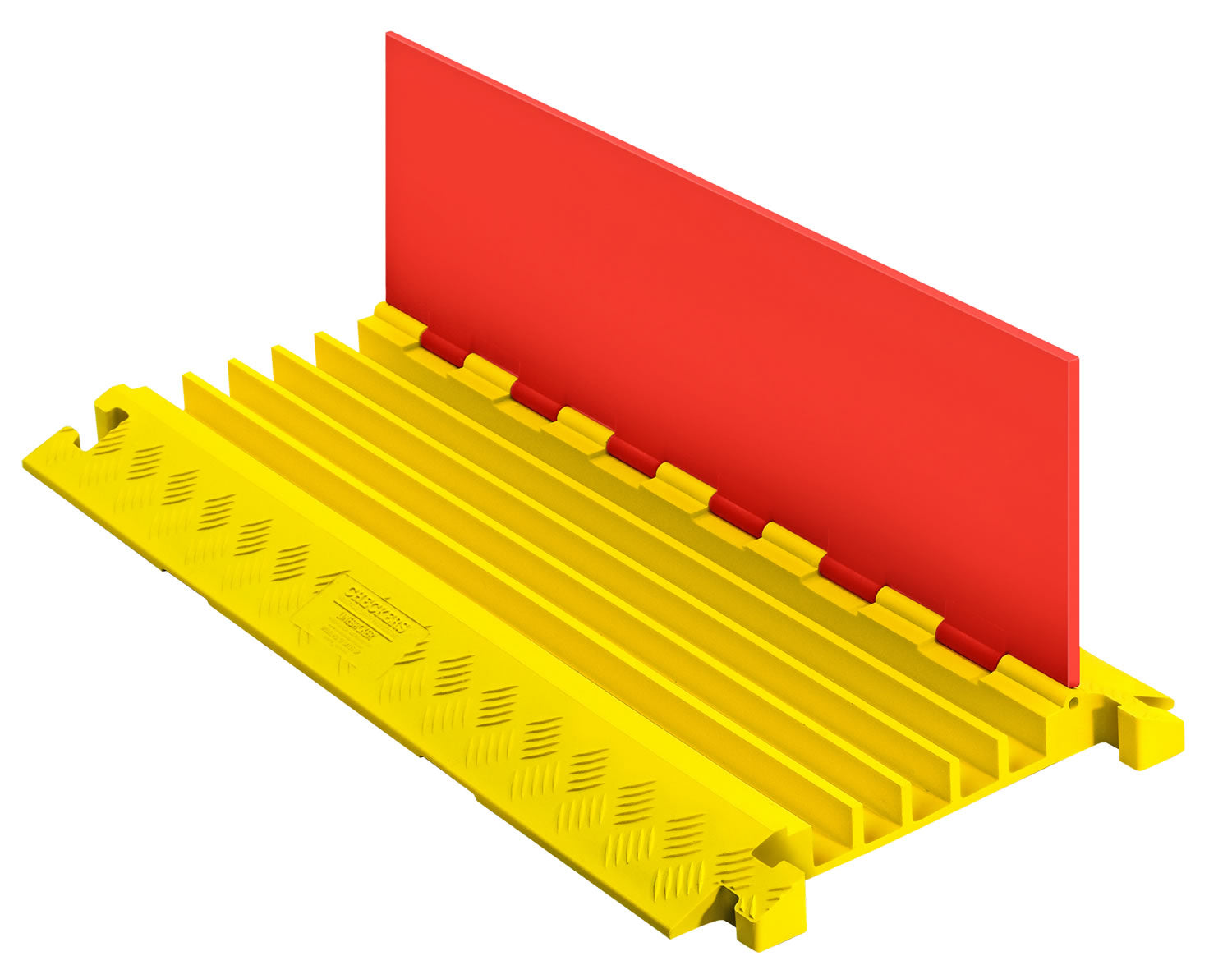

The Linebacker® 5 channel general purpose cable protector is ideal for use in manufacturing applications, where larger hoses and cables tend to see heavy, repetitive traffic. The range incorporates a heavy duty hinged lid that protects internal cables and hoses when forklifts and similar vehicles drive over.

  • Easy To Transport - Each section is 36” long, which is ideal for manual installation by a single worker.

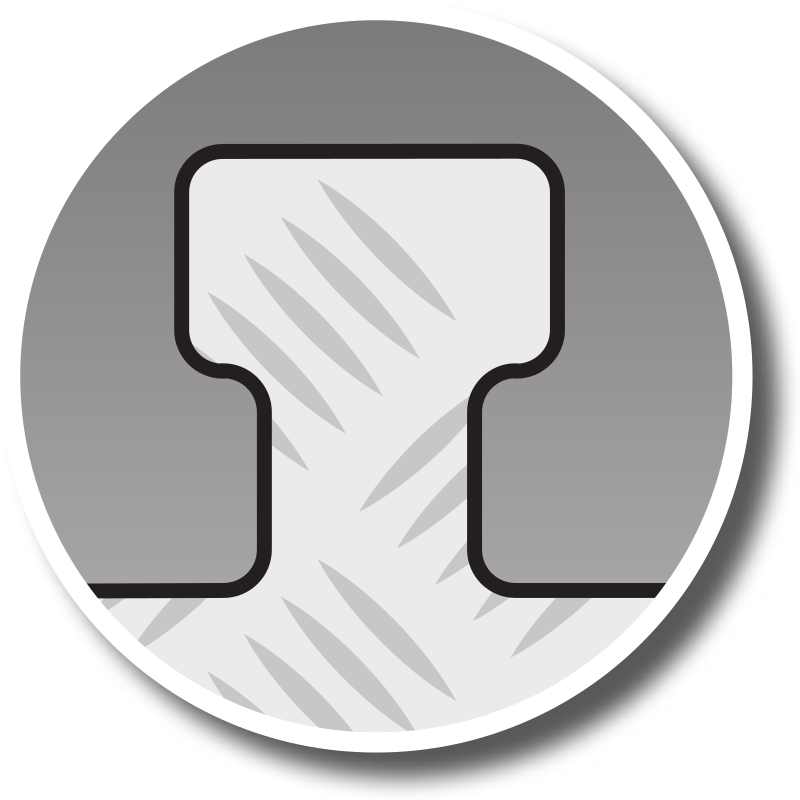

  • Interlocking Design - With each section locking into the next using Checkers patented T-Connector you can make any run as long as needed.
  • All Weather Construction - The UV stabilised Polyurethane construction means that the Linebacker® can be used in all seasons and almost all environments. It is also abrasion, impact and chemical resistant.
  • Lift Cables without Dismantling the run - The reinforced hinged lid means that cables can be lifted and removed or replaced without taking the run of protection apart.
Within the Linebacker® general manufacturing 4 channel range there are plenty of accessories including "Y" splits, 90° cross overs as well as end caps to locate at the end of runs to ensure cables enter and exit without chafing, for more information on the Linebacker® range see here.

Have questions about cable protection products?

Give our sales team a call toll free at (800) 671-9662, our experienced staff will help you choose the best product for your needs.

5 Channel General Purpose Linebacker® Cable & Hose Protection System

Specification

Dimensions - A: length
36 in. (91.4 cm)
Dimensions - B: width
17.25 in. (43.82 cm)
Dimensions - C: height
1.95 in. (5.00 cm)
Dimensions - D: channel width
1.3 in. (3.3 cm)
Dimensions - E: channel height
1.3 in. (3.3 cm)
Load Capacity - Per axle
21,000 lb./Axle (9,526 kg) (Max load tested at 70°F (21°C)
Load Capacity - Per tire
10,500 lb./Tire (4,763 kg) (Max load tested at 70°F (21°C)
Miscellaneous - Cable & hose diameter (max)
1.3 in
Miscellaneous - Channels
5
Packaging - Weight
22 lb. (10 kg)
