5 Channel General Purpose Linebacker® End Cap Cable Ramp (pair)

5 Channel General Purpose Linebacker® End Cap Cable Ramp (pair)
5 Channel General Purpose Linebacker® End Cap Cable Ramp (pair)
5 Channel General Purpose Linebacker® End Cap Cable Ramp (pair)
Product code: 210364
In Stock
$188.47

Call for volume pricing!

(800) 671-9662

  • Expedited Shipping Available Upon Request

  • Volume Discounts Buy More, Pay Less

  • Zero Sales Tax Order Online


Title: Default Title

  • Need a large quantity? Call (800) 671-9662 for a quote.

  • View the product details below to learn more about this product.
5 Channel General Purpose Linebacker® End Cap Cable Ramp (pair)

5 Channel General Purpose Linebacker® End Cap Cable Ramp (pair)

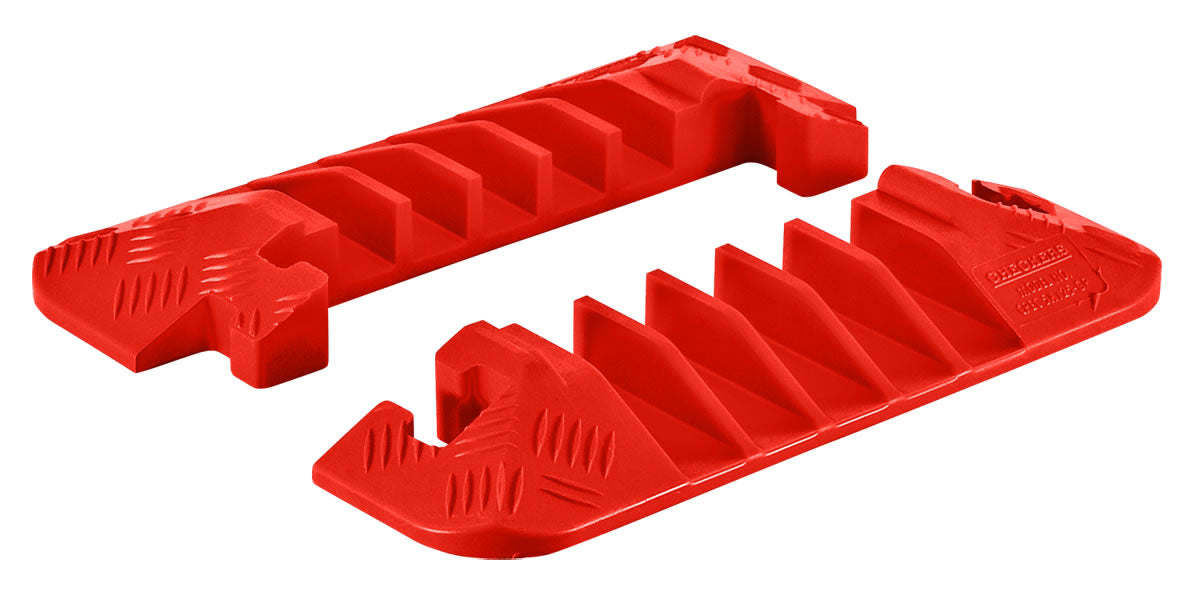

Linebacker® 5 Channel General Purpose End Cap

The Linebacker® 5 channel end cap is for use at the end of a run of cable protection, it allows a safe, sharp edge free entry point for cables and hoses, ensuring there are no "pinch points" or other edges that may chafe the cable being protected.

  • Interlocking Design - With each section locking into the next using Checkers patented T-Connector you can make any run as long as needed.
  • All Weather Construction - The UV stabilised Polyurethane construction means that the Linebacker® can be used in all seasons and almost all environments. It is also abrasion, impact and chemical resistant.
  • Lift Cables without Dismantling the run - The reinforced hinged lid means that cables can be lifted and removed or replaced without taking the run of protection apart.
You can find out more information on the Linebacker® range here.

Have questions about cable protection products?

Give our sales team a call toll free at (800) 671-9662, our experienced staff will help you choose the best product for your needs.

5 Channel General Purpose Linebacker® End Cap Cable Ramp (pair)

Specification

Dimensions - A: length
4.75 in. (12.07 cm)
Dimensions - B: width
17.25 in. (43.82 cm)
Dimensions - C: height
1.95 in. (5.00 cm)
Dimensions - D: channel width
1.3 in. (3.3 cm)
Dimensions - E: channel height
1.3 in. (3.3 cm)
Load Capacity - Per axle
21,000 lb./Axle (9,526 kg) (Max load tested at 70°F (21°C)
Load Capacity - Per tire
10,500 lb./Tire (4,763 kg) (Max load tested at 70°F (21°C)
Miscellaneous - Cable & hose diameter (max)
1.3 in
Miscellaneous - Channels
5
Packaging - Weight
2.7 lb. (1.2 kg)
