Product code:210499
In Stock
$360.65

Call for volume pricing!

(800) 671-9662

  • Expedited Shipping Available Upon Request

  • Volume Discounts Buy More, Pay Less

  • Zero Sales Tax Order Online

Linebacker® Type: Drop Over 2.25" CP1X225-GP-DO
LineBacker® Color: Yellow

  • Need a large quantity? Call (800) 671-9662 for a quote.

  • View the product details below to learn more about this product.
1 Channel 2.25" General Purpose Linebacker® Cable & Hose Protection
$360.65

1 Channel 2.25" General Purpose Linebacker® Cable & Hose Protection

Linebacker® 1 Channel 2.25" General Purpose Cable & Hose Protector

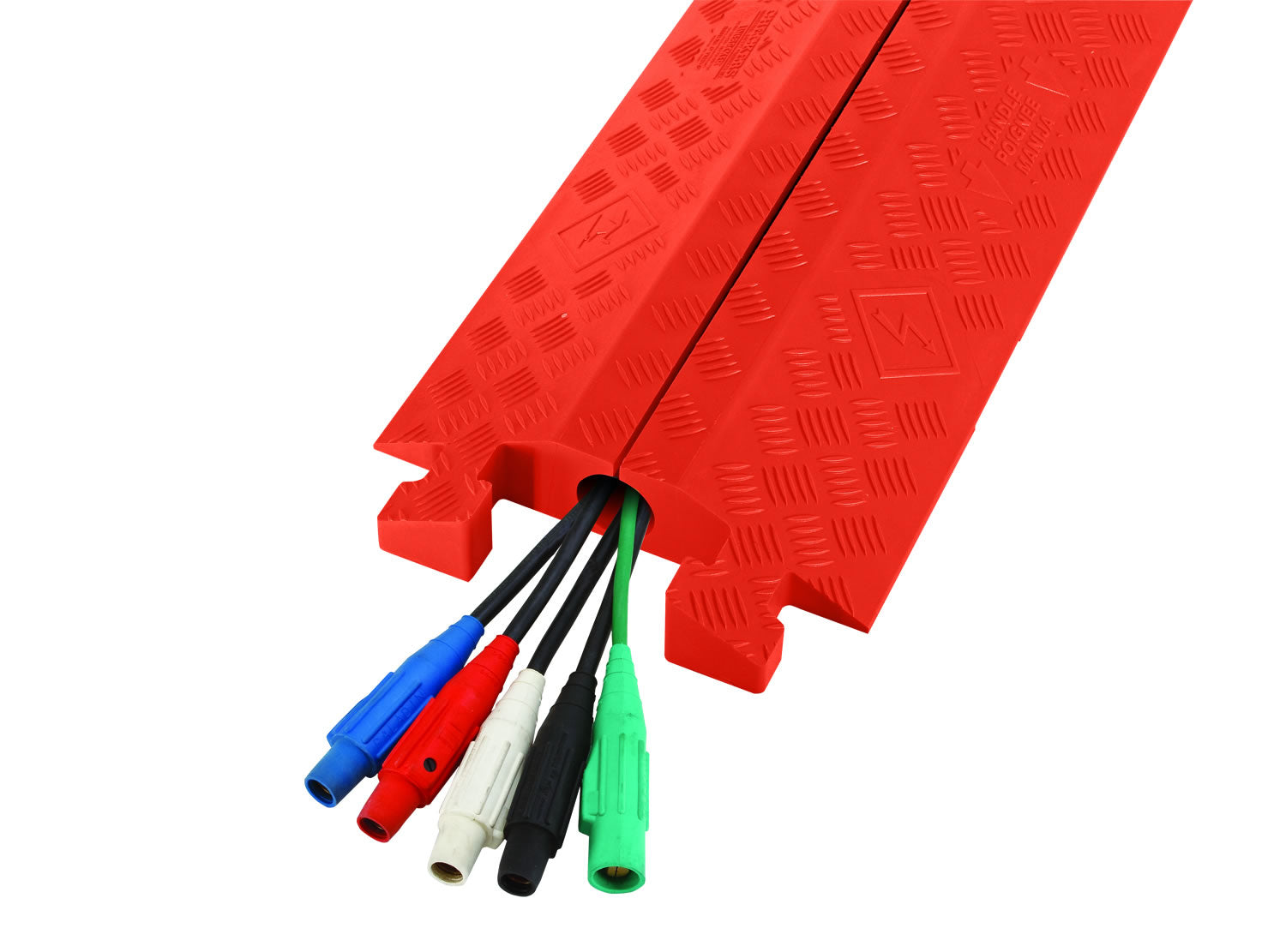

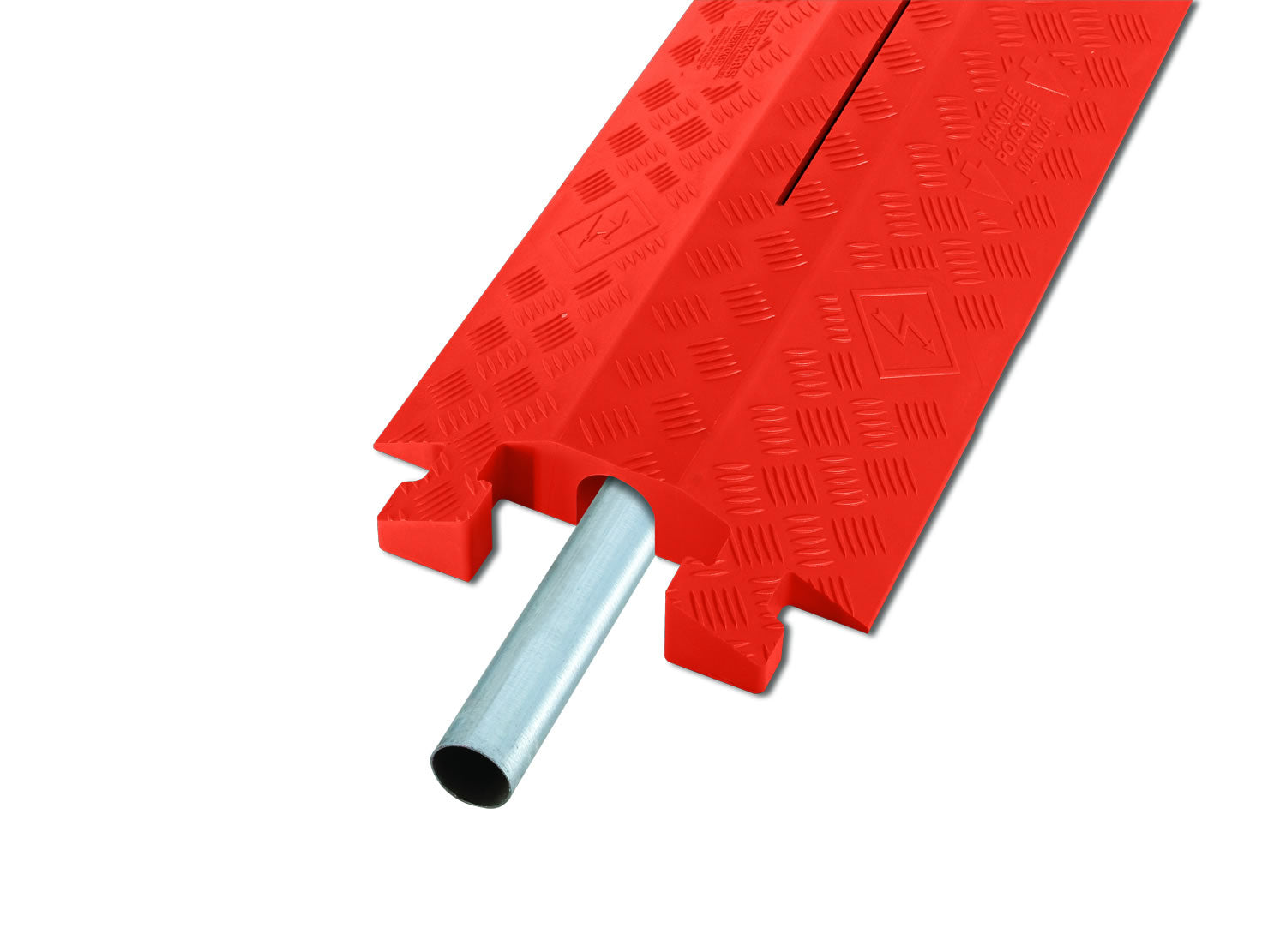

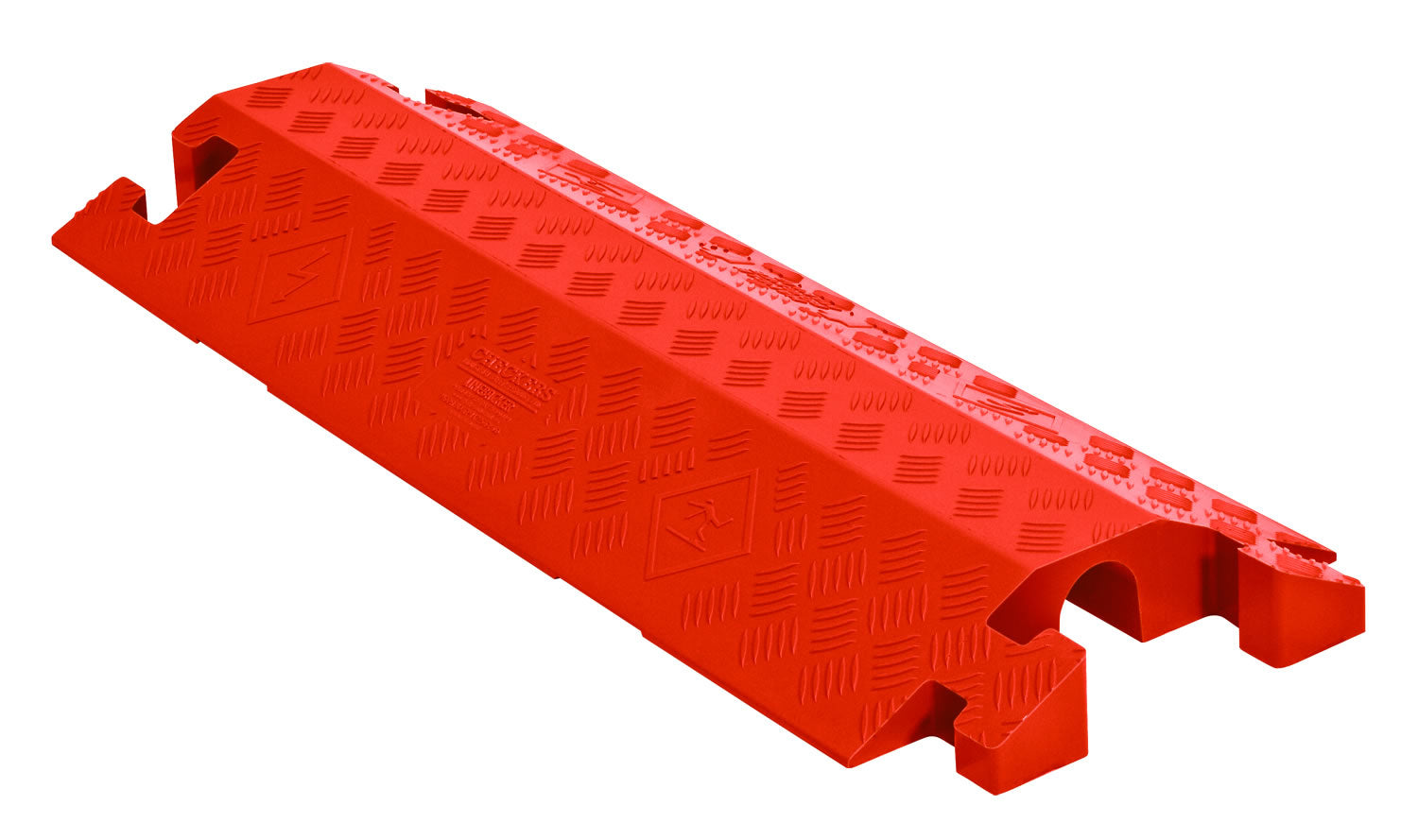

The Linebacker® 1 channel general purpose cable protector is available in both a split top and drop over configuration. There is also a 1.25" channel variant for smaller cable and hoses. The single piece construction makes these easy to deploy, and very easy to store and transport. Their lightweight construction makes them easy work for any worker to deploy.

  • Easy To Transport - Each section is 36” long, which is ideal for manual installation by a single worker.
  • Interlocking Design - With each section locking into the next using Checkers patented T-Connector you can make any run as long as needed.
  • All Weather Construction - The UV stabilised Polyurethane construction means that the Linebacker® can be used in all seasons and almost all environments. It is also abrasion, impact and chemical resistant.
For more information on the Linebacker® range see here.

Have questions about cable protection products?

Give our sales team a call toll free at (800) 671-9662, our experienced staff will help you choose the best product for your needs.

1 Channel 2.25 General Purpose Linebacker® Cable & Hose Protection

Specification

Dimensions - A: length
36 in. (91.4 cm)
Dimensions - B: width
14.25 in. (36.19 cm)
Dimensions - C: height
3 in. (7.62 cm)
Dimensions - D: channel width
2.25 in. (5.72 cm)
Dimensions - E: channel height
2.25 in. (5.72 cm)
Load Capacity - Per axle
17,000 lb./Axle (7,712 kg) (Max load tested at 70°F (21°C)
Load Capacity - Per tire
8,500 lb./Tire (7,712 kg) (Max load tested at 70°F (21°C)
Miscellaneous - Cable & hose diameter (max)
2.25 in
Miscellaneous - Channels
1
Miscellaneous - Skus
CP1X225-GP-B, CP1X225-GP-DO-B, CP1X225-GP-DO-O, CP1X225-GP-DO-Y, CP1X225-GP-O, CP1X225-GP-Y
Packaging - Weight
19 lb. (8.6 kg)

Downloads

Linebacker 1 Channel General Linebacker 1 Channel General - 2
