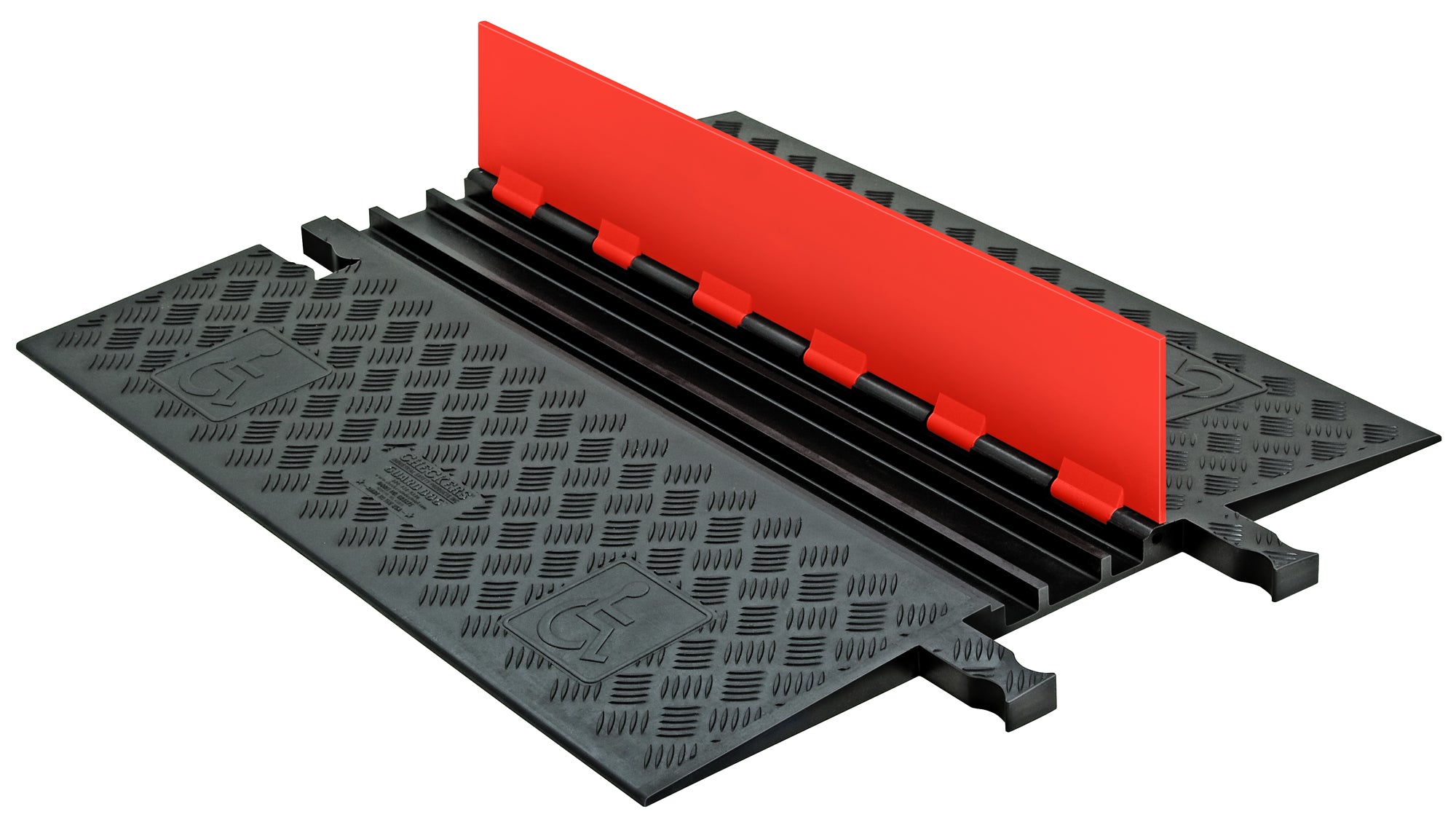

Guard Dog® Low Profile ADA 3 Channel Cable Protector

Guard Dog® Low Profile ADA 3 Channel Cable Protector

The low profile ADA 3 channel Guard Dog® cable protector ramp can accommodate three cables (or three groups of several smaller cables) each with a total outside diameter up to 0.75".

The ADA variant of this ramp is ideal for use in areas were access for wheelchair users is required, or where access for small vehicles such as golf buggy's, carts, and even small trucks is needed.

If you need the standard ramp variant it is shown below in the related products. There are also one, two and five channel variants available should you have larger or smaller quantities of cables to accommodate.

Specification

Dimensions - A: length

36 in. (91.4 cm)

Dimensions - B: width

30.3 in. (76.98 cm)

Dimensions - C: height

1.25 in. (3.18 cm)

Dimensions - D: channel width

1.25 in. (3.25 cm)

Dimensions - E: channel height

.75 in. (1.9 cm)

Load Capacity - Per axle

54,000 lb./Axle (24,492 kg) (Max load tested at 70°F (21°C)

Load Capacity - Per tire

27,000 lb./Tire (12,246 kg) (Max load tested at 70°F (21°C)

Miscellaneous - Cable & hose diameter (max)

.75 in

Miscellaneous - Channels

3

Packaging - Weight

23.4 lb. (10.61 kg)
