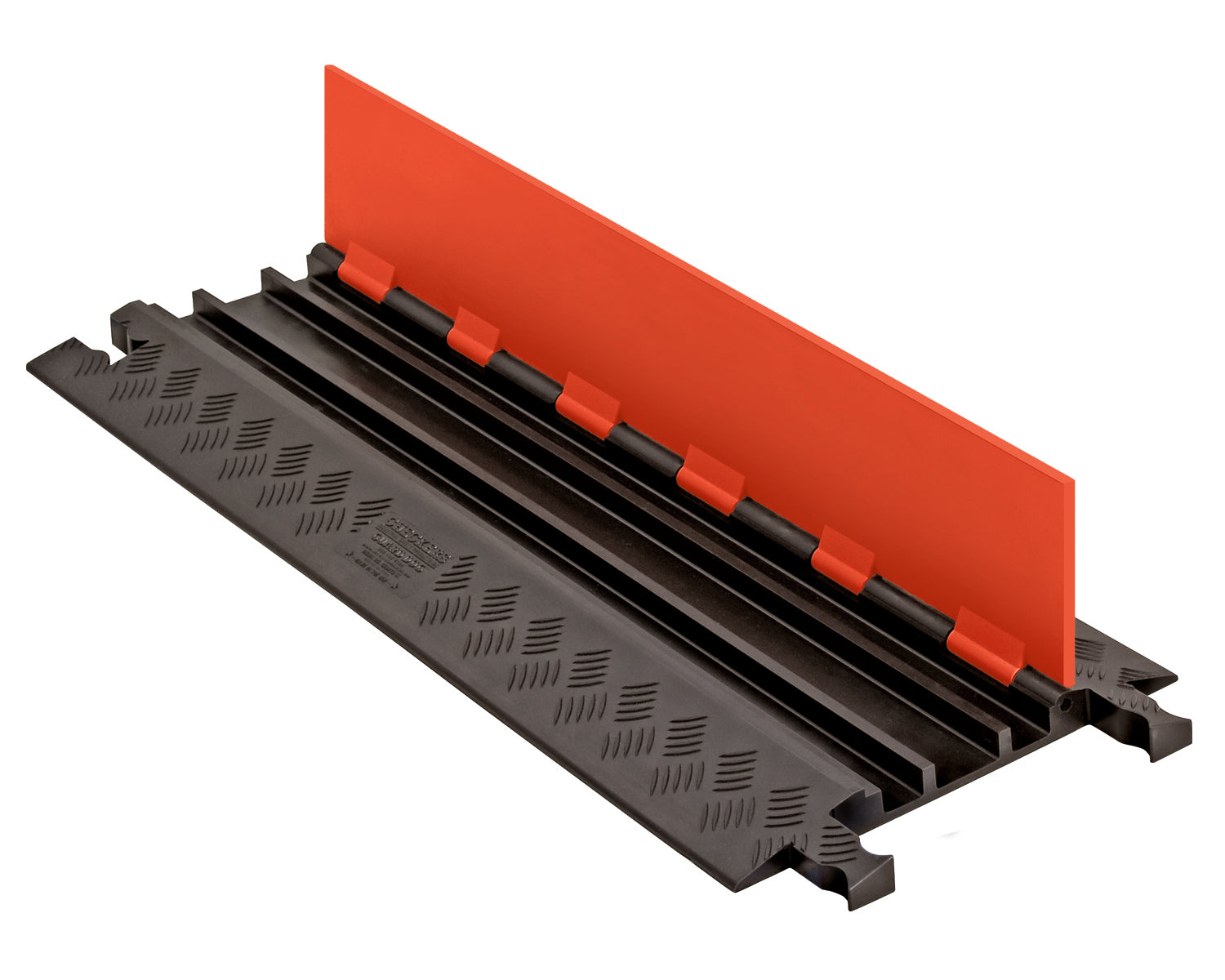

Guard Dog® Low Profile 3 Channel Cable Protector

Guard Dog® Low Profile 3 Channel Cable Protector

The low profile 3 channel Guard Dog® cable protector ramp can accommodate three cables (or three groups of several smaller cables) each with a total outside diameter up to 0.75".

This is the standard ramp version; there is an alternative ADA compatible variant that is shown below in the related products. There are also one, two and five channel variants available should you have larger or smaller quantities of cables to accommodate.

Specification

Dimensions - A: length

36 in. (91.4 cm)

Dimensions - B: width

13.8 in. (35.07 cm)

Dimensions - C: height

1.25 in. (3.18 cm)

Dimensions - D: channel width

1.25 in. (3.25 cm)

Dimensions - E: channel height

.75 in. (1.9 cm)

Load Capacity - Per axle

34,000 lb./Axle (15,422 kg) (Max load tested at 70°F (21°C)

Load Capacity - Per tire

17,000 lb./Tire (7,711 kg) (Max load tested at 70°F (21°C)

Miscellaneous - Cable & hose diameter (max)

.75 in

Miscellaneous - Channels

3

Miscellaneous - Skus

GD3X75-ST-B/B, GD3X75-ST-O/B

Packaging - Weight

12.2 lb. (5.53 kg)
