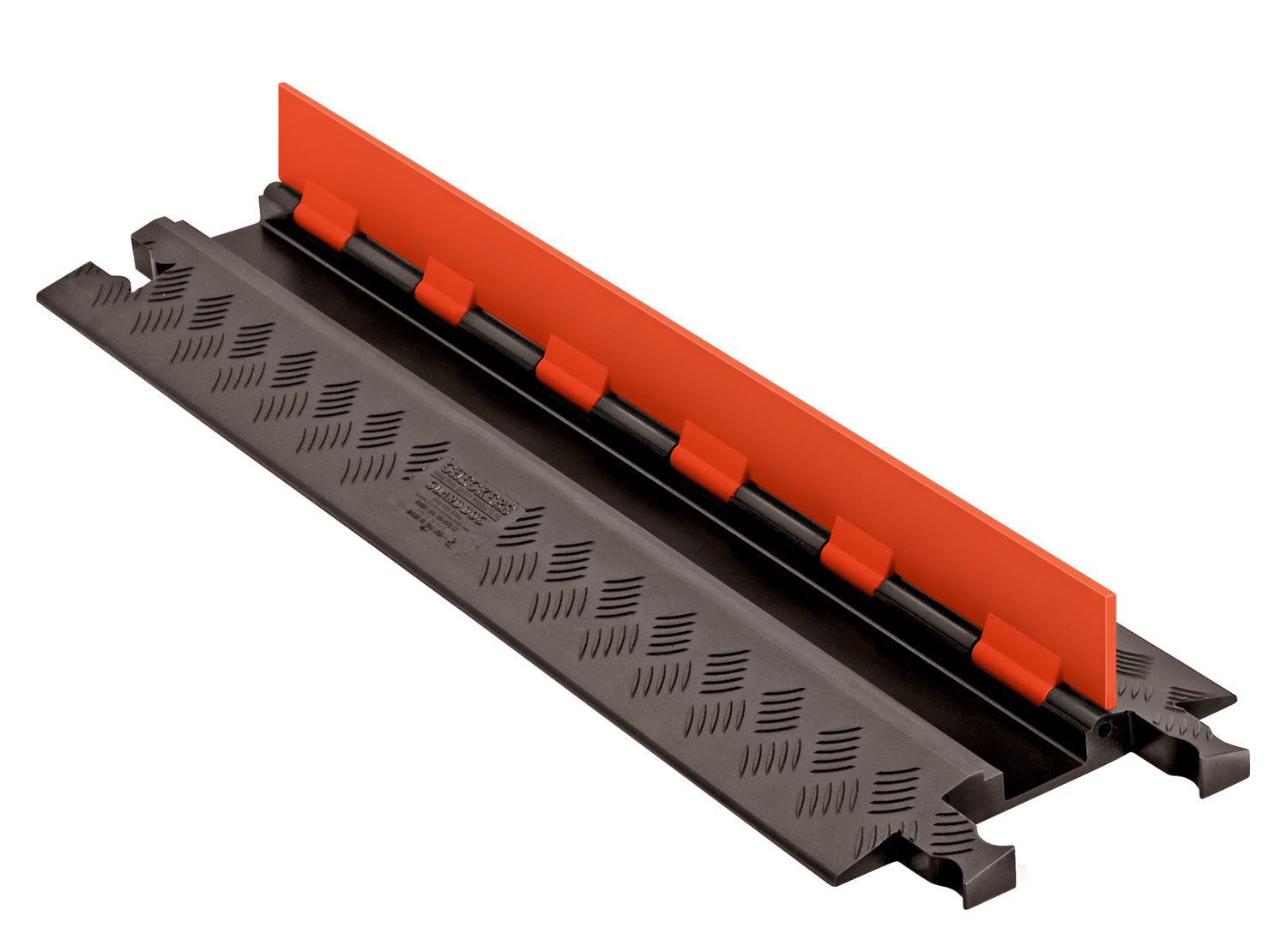

Guard Dog® Low Profile 1 Channel Cable Protector

Guard Dog® Low Profile 1 Channel Cable Protector

The low profile 1 channel Guard Dog® cable protector ramp can accommodate one cable (or several smaller cables) with a total outside diameter up to 0.75".

This is the standard ramp version; there is an alternative ADA compatible variant that is shown below in the related products. There are also two, three and five channel variants available should you have larger quantities of cables to accommodate.

Specification

Dimensions - A: length

36 in. (91.4 cm)

Dimensions - B: width

10.81 in. (27.46 cm)

Dimensions - C: height

1.25 in. (3.18 cm)

Dimensions - D: channel width

2.25 in. (5.72 cm)

Dimensions - E: channel height

.75 in. (1.9 cm)

Load Capacity - Per axle

26,000 lb./Axle (11,792 kg) (Max load tested at 70°F (21°C)

Load Capacity - Per tire

13,000 lb./Tire (5,896 kg) (Max load tested at 70°F (21°C)

Miscellaneous - Cable & hose diameter (max)

.75 in

Miscellaneous - Channels

1

Miscellaneous - Skus

GD1X75-ST-B/B, GD1X75-ST-O/B

Packaging - Weight

7.8 lb. (13.6 kg)
